Product comparison · 2 power supply units

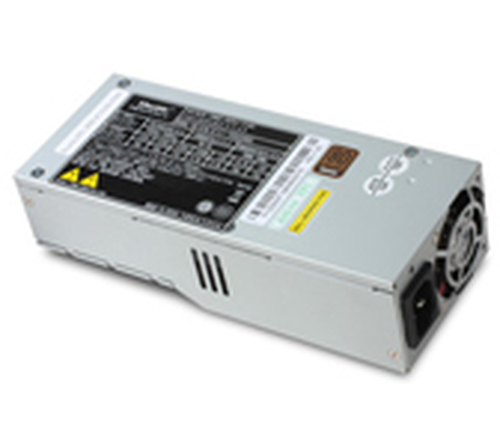

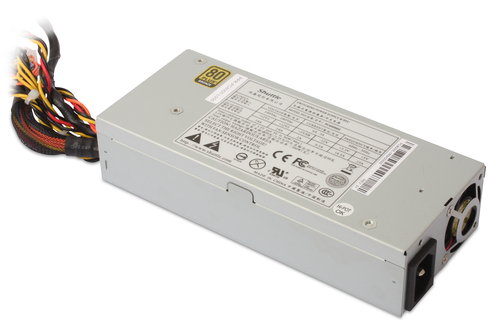

Shuttle PC60 power supply unit vs Shuttle PC63 power supply unit

13specifications compared
6differ
7identical
24known for one product only

Key differences

Total power
- PC60 power supply unit:300 W
- PC63 power supply unit:500 W
AC input voltage
- PC60 power supply unit:90 - 264 V
- PC63 power supply unit:100 - 240 V
AC input frequency
- PC60 power supply unit:47 - 63 Hz
- PC63 power supply unit:50 - 60 Hz
Input current
- PC60 power supply unit:3 - 6 A
- PC63 power supply unit:60 - 90 A
Peripheral (Molex) power connectors (4-pin)
- PC60 power supply unit:2
- PC63 power supply unit:Yes
Safety
- PC60 power supply unit:FCC class B, CE, BSMI, CCC
- PC63 power supply unit:cUL, TÜV, CB, BSMI, CCC

Side by side

Differences highlightedShow differences only

Comparison of PC60, PC63
37 specifications	A Shuttle PC60 power supply unit Model PC60 View product	B Shuttle PC63 power supply unit Model PC63 View product
Power4 differ
Total powerDiffers	300 W	500 W
AC input voltageDiffers	90 - 264 V	100 - 240 V
AC input frequencyDiffers	47 - 63 Hz	50 - 60 Hz
Input currentDiffers	3 - 6 A	60 - 90 A
Maximum input current (@110V)Known for one	+12V,+3.3V,+5V,+5Vsb,-12V	Unknown — not stated by the source
Power Factor Correction (PFC) typeKnown for one	Active	Unknown — not stated by the source
Combined power (+3.3V)Known for one	14.5 W	Unknown — not stated by the source
Combined power (+12V)Known for one	14 W	Unknown — not stated by the source
Combined power (+5V)Known for one	15 W	Unknown — not stated by the source
Combined power (-12V)Known for one	0.3 W	Unknown — not stated by the source
Max output current (+5Vsb)Known for one	2 A	Unknown — not stated by the source
EfficiencyKnown for one	80%	Unknown — not stated by the source
Hold timeKnown for one	17 ms	Unknown — not stated by the source
Power protection featuresKnown for one	Short circuit	Unknown — not stated by the source
Ports & interfaces1 differ
Motherboard power connectorKnown for one	20+4 pin ATX	Unknown — not stated by the source
Number of SATA power connectors	3	3
Peripheral (Molex) power connectors (4-pin)Differs	2	Yes
ATX Power connector (24-pin)	Yes	Yes
Floppy drive power connector	1	1
Cabling type	Non-Modular	Non-Modular
PCI Express power connectors (6-pin)Known for one	Unknown — not stated by the source	Yes
Performanceidentical
PurposeKnown for one	PC	Unknown — not stated by the source
80 PLUS certificationKnown for one	80 PLUS	Unknown — not stated by the source
Noise level	30 dB	30 dB
Mean time between failures (MTBF)Known for one	100000 h	Unknown — not stated by the source
Compatible productsKnown for one	Unknown — not stated by the source	XPC models: H series
Electromagnetic emissionsKnown for one	Unknown — not stated by the source	FCC class B, CE, BSMI, CCC
Designidentical
Product colourKnown for one	Grey	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	10 - 50 °C	10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Safety regulation & standards1 differ
SafetyDiffers	FCC class B, CE, BSMI, CCC	cUL, TÜV, CB, BSMI, CCC
Weight & dimensionsidentical
WidthKnown for one	82 mm	Unknown — not stated by the source
DepthKnown for one	190 mm	Unknown — not stated by the source
HeightKnown for one	43 mm	Unknown — not stated by the source
WeightKnown for one	900 g	Unknown — not stated by the source
Other featuresidentical
Rise timeKnown for one	20 ms	Unknown — not stated by the source
Power requirementsKnown for one	Unknown — not stated by the source	100~240V AC, 50/60Hz

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
