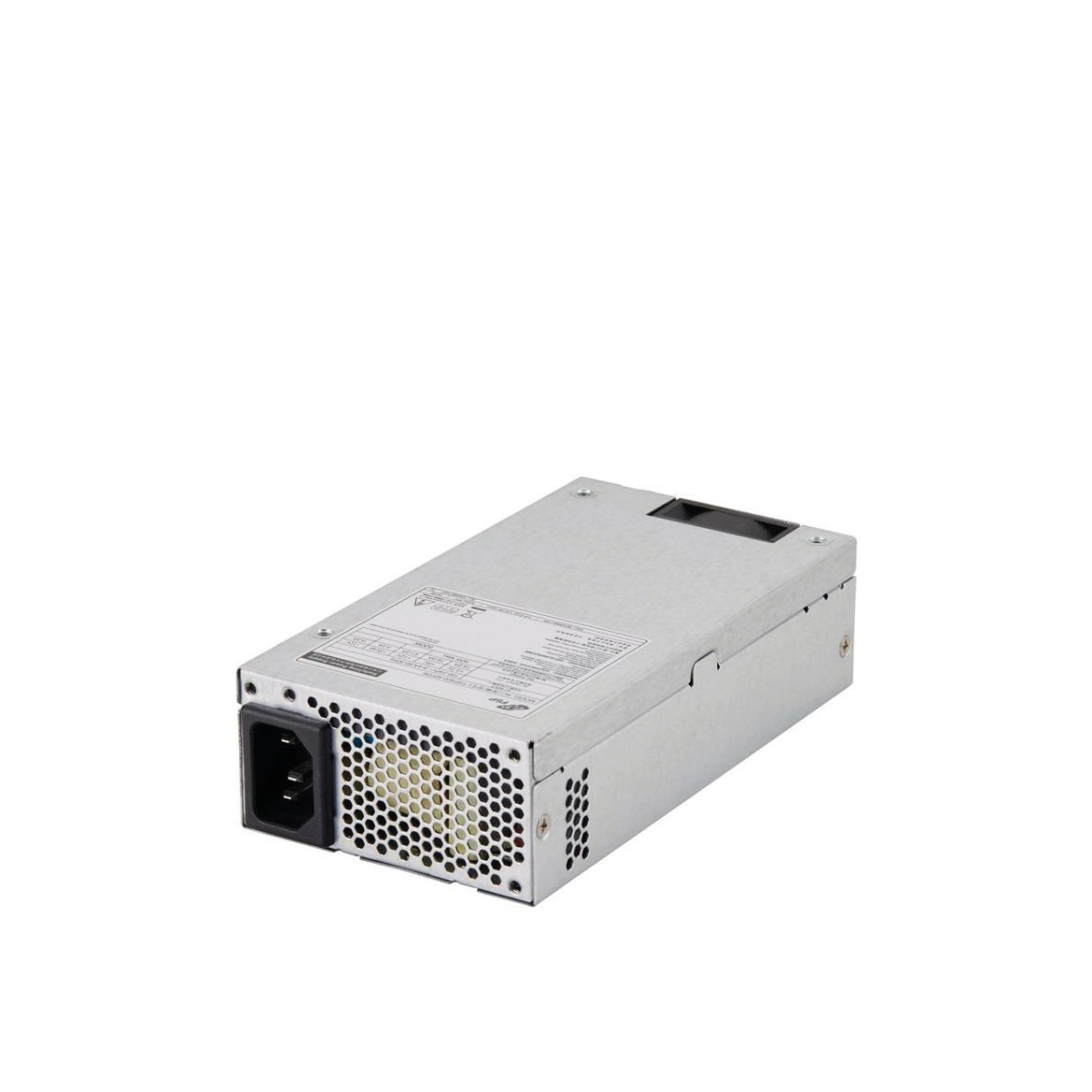

FSP500 / 500 Watt power supply for compatible XPC Cubes
Model FSP500EAN 4046047104109
37 specifications
- Weight700 g
- ColourGrey
- Total power500 W
- Motherboard power connector20-pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 700 g
- Colour
- Grey
- Total power
- 500 W
- Motherboard power connector
- 20-pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- FSP500
- Part number
- FSP500
- EAN / UPC
- 4046047104109
- Also known as
- Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes
Specifications
37 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 41 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Power protection features | Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | Shuttle XPC SH610R4, SH510R4, SH570R6 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan location | Rear |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 81.5 mm |
| Height | 40.5 mm |
| Weight | 700 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 900 g |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044083 |
