Product comparison · 2 power supply units

Shuttle FSP300 / 300 Watt power supply for compatible XPC Cubes vs Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes

36specifications compared
6differ
30identical
3known for one product only

Key differences

Total power
- FSP300 / 300 Watt power supply for compatible XPC Cubes:300 W
- FSP500 / 500 Watt power supply for compatible XPC Cubes:500 W
Max output current (+3.3V)
- FSP300 / 300 Watt power supply for compatible XPC Cubes:12 A
- FSP500 / 500 Watt power supply for compatible XPC Cubes:14 A
Max output current (+12V)
- FSP300 / 300 Watt power supply for compatible XPC Cubes:24 A
- FSP500 / 500 Watt power supply for compatible XPC Cubes:41 A
Max output current (+5V)
- FSP300 / 300 Watt power supply for compatible XPC Cubes:14 A
- FSP500 / 500 Watt power supply for compatible XPC Cubes:16 A
Max output current (-12V)
- FSP300 / 300 Watt power supply for compatible XPC Cubes:0.3 A
- FSP500 / 500 Watt power supply for compatible XPC Cubes:0.5 A

Side by side

Differences highlightedShow differences only

Comparison of FSP300, FSP500

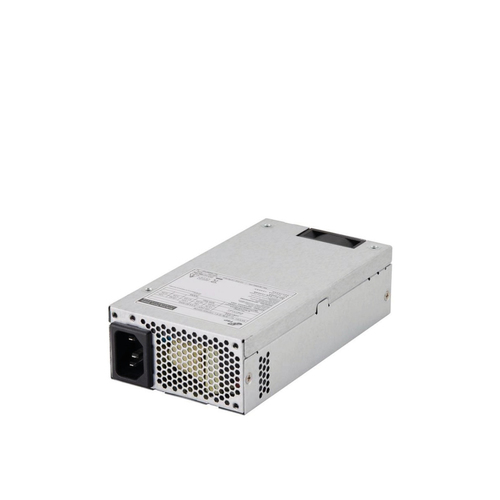

39 specifications	A Shuttle FSP300 / 300 Watt power supply for compatible XPC Cubes Model FSP300 View product	B Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes Model FSP500 View product
Power5 differ
Total powerDiffers	300 W	500 W
AC input voltage	90 - 264 V	90 - 264 V
AC input frequency	47 - 63 Hz	47 - 63 Hz
Power Factor Correction (PFC) type	Active	Active
Combined power (+5Vsb)	3 W	3 W
Max output current (+3.3V)Differs	12 A	14 A
Max output current (+12V)Differs	24 A	41 A
Max output current (+5V)Differs	14 A	16 A
Max output current (-12V)Differs	0.3 A	0.5 A
Power protection features	Over voltage, Short circuit	Over voltage, Short circuit
Ports & interfacesidentical
Motherboard power connector	20-pin ATX	20-pin ATX
Number of SATA power connectors	4	4
Peripheral (Molex) power connectors (4-pin)	2	2
PCI Express power connectors (6-pin)Known for one	1	Unknown — not stated by the source
ATX power connector (20+4 pin)Known for one	Yes	Unknown — not stated by the source
PCI Express power connectors (6+2 pin)Known for one	Unknown — not stated by the source	2
Performance1 differ
Purpose	PC	PC
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
Bearing technology	Ball bearing	Ball bearing
Mean time between failures (MTBF)	100000 h	100000 h
Compatible productsDiffers	Shuttle XPC SH610R4, SH510R4, SH570R6, SH570R6 Plus, SH570R8, SW580R8	Shuttle XPC SH610R4, SH510R4, SH570R6
Designidentical
Product colour	Grey	Grey
Cooling type	Active	Active
Fan diameter	4 cm	4 cm
Number of fans	1 fan(s)	1 fan(s)
Fan location	Rear	Rear
Operational conditionsidentical
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)	-20 - 80 °C	-20 - 80 °C
Operating relative humidity (H-H)	0 - 85%	0 - 85%
Storage relative humidity (H-H)	0 - 90%	0 - 90%
Certificatesidentical
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL	CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL
Weight & dimensionsidentical
Width	150 mm	150 mm
Depth	81.5 mm	81.5 mm
Height	40.5 mm	40.5 mm
Weight	700 g	700 g
Packaging dataidentical
Package weight	900 g	900 g
Technical detailsidentical
Sustainability certificates	ENERGY STAR	ENERGY STAR
Sustainability compliance	Yes	Yes
Logistics dataidentical
Harmonized System (HS) code	85044083	85044083

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
