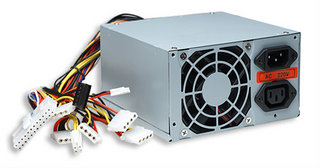

Manhattan 101400 power supply unit
400 W 20+4 pin ATX ATX Grey
Model 101400
31 specifications
- Weight1.1 kg
- ColourGrey
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 1.1 kg
- Colour
- Grey
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Manhattan
- Category
- Power Supply Unit
- Model
- 101400
- Part number
- 101400
- Also known as
- Manhattan 101400 power supply unit 400 W 20+4 pin ATX ATX Grey
Specifications
31 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V,-5V |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 14 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 1.5 A |
| Efficiency | 70% |
| Power protection features | Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Monitor outlet | No |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.1 kg |
