Product comparison · 2 power supply units

Manhattan 101387 power supply unit vs Manhattan 101400 power supply unit

Key differences

Differences highlightedShow differences only

Comparison of 101387, 101400

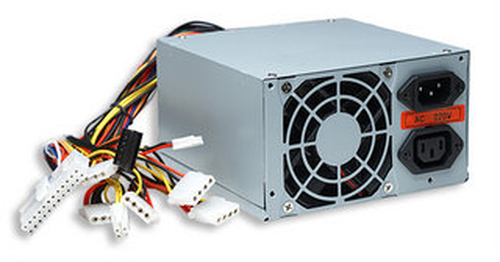

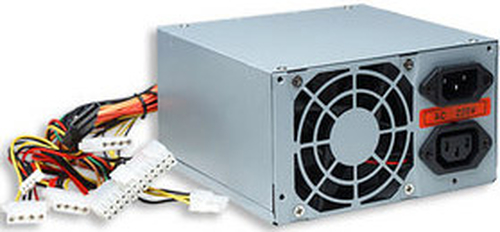

31 specifications	A Manhattan 101387 power supply unit Model 101387 View product	B Manhattan 101400 power supply unit Model 101400 View product
Power2 differ
Total powerDiffers	300 W	400 W
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Input currentDiffers	6 A	8 A
Maximum input current (@110V)Known for one	Unknown — not stated by the source	+12V,+3.3V,+5V,+5Vsb,-12V,-5V
Max output current (+3.3V)	16 A	16 A
Max output current (+12V)	14 A	14 A
Max output current (+5V)	25 A	25 A
Max output current (-12V)	0.5 A	0.5 A
Max output current (+5Vsb)	1.5 A	1.5 A
Efficiency	70%	70%
Power protection features	Short circuit	Short circuit
Ports & interfaces1 differ
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Number of SATA power connectors	1	1
Peripheral (Molex) power connectors (4-pin)	4	4
Floppy drive power connector	1	1
Cabling type	Non-Modular	Non-Modular
Monitor outletDiffers	Yes	No
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
Designidentical
Product colour	Grey	Grey
Cooling type	Active	Active
Number of fans	1 fan(s)	1 fan(s)
Fan location	Side	Side
Operational conditionsidentical
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Storage relative humidity (H-H)	10 - 90%	10 - 90%
Weight & dimensions1 differ
Width	150 mm	150 mm
Depth	140 mm	140 mm
Height	86 mm	86 mm
WeightDiffers	887 g	1.1 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
