Alimentatore PF1200 EVO
Model Alimentatore PF1200 EVOPart no. ITPSEPF1200EAN 8056157881766
27 specifications
- Weight3.17 kg
- ColourBlack
- Total power1200 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width187.8 mm
Overview
- Weight
- 3.17 kg
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 187.8 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- Alimentatore PF1200 EVO
- Part number
- ITPSEPF1200
- EAN / UPC
- 8056157881766
- Also known as
- itek Alimentatore PF1200 EVO power supply unit 1200 W 24-pin ATX ATX Black
Specifications
27 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power, Over voltage, Under voltage, Over current, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|

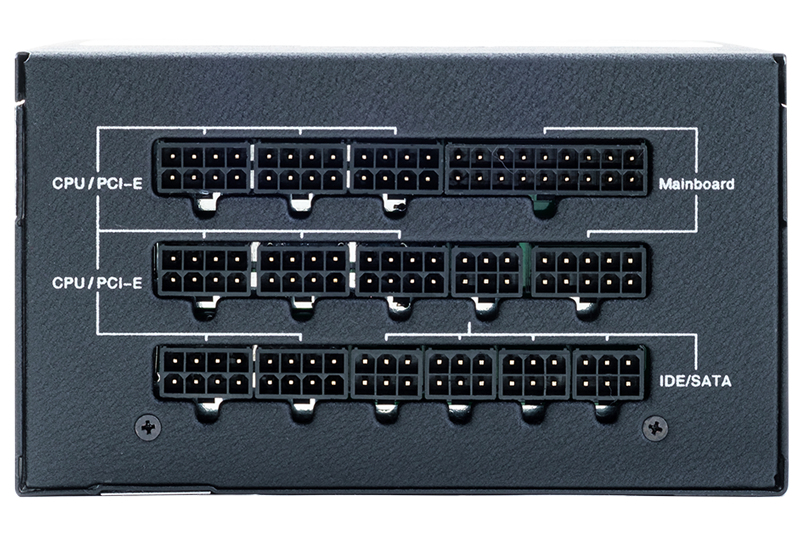

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 57 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 150,530 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |

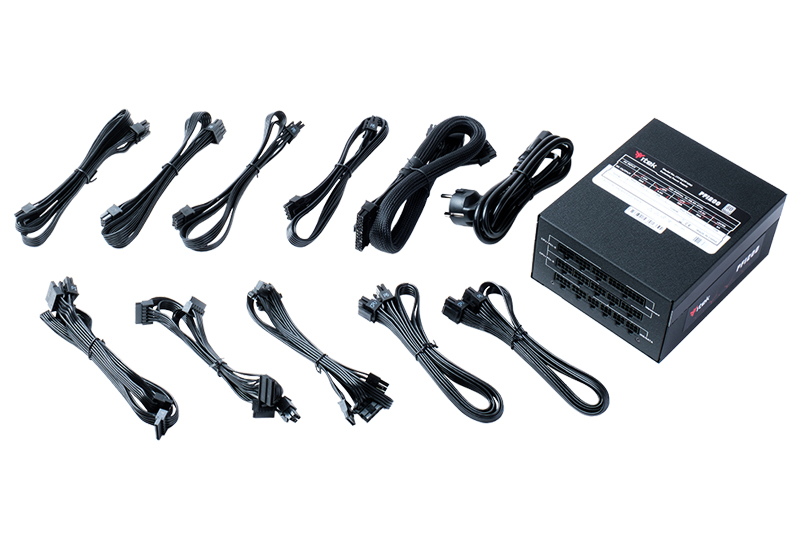

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

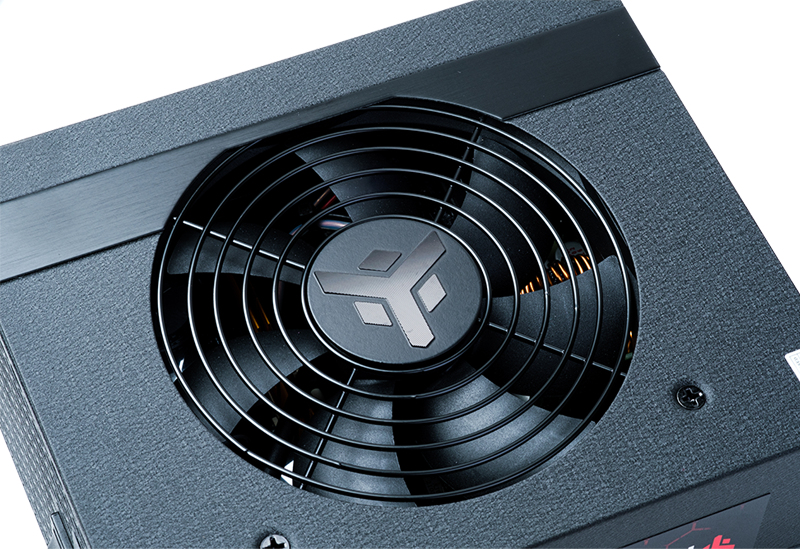

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

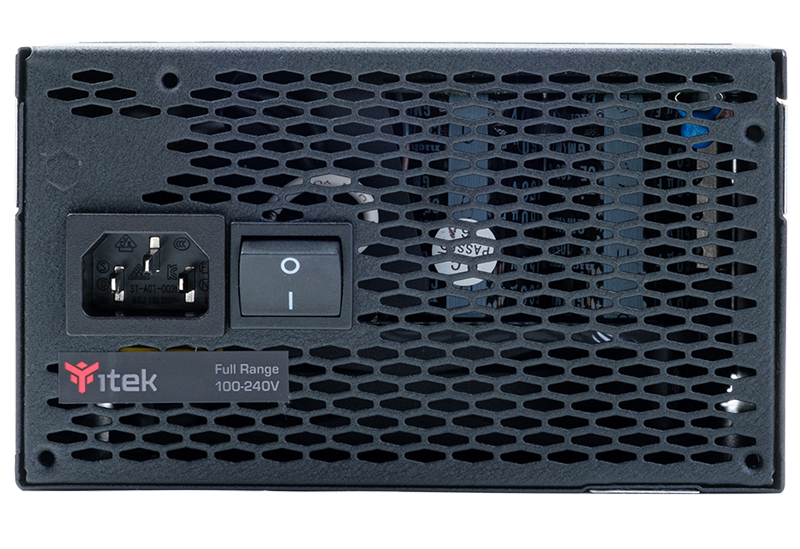

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 187.8 mm |
| Depth | 145.7 mm |
| Height | 86 mm |
| Weight | 3.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.5 kg |
| Package type | Box |
