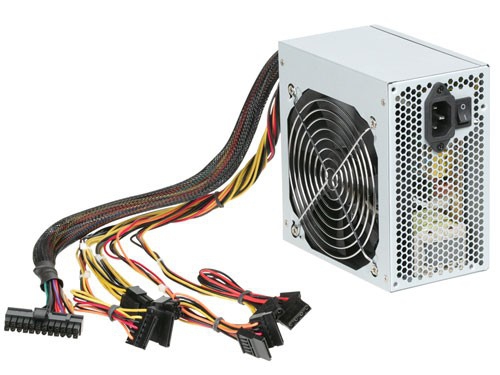

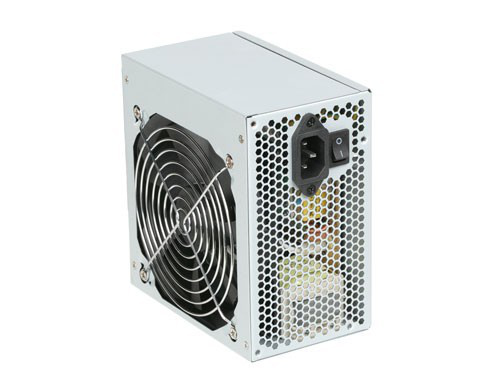

i-tec PS380W power supply unit
380 W 20+4 pin ATX ATX Grey
Model PS380WEAN 8594047318577
35 specifications
- ColourGrey
- Total power380 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Grey
- Total power
- 380 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- i-tec
- Category
- Power Supply Unit
- Model
- PS380W
- Part number
- PS380W
- EAN / UPC
- 8594047318577
- Also known as
- i-tec PS380W power supply unit 380 W 20+4 pin ATX ATX Grey
Specifications
35 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 380 W |
| AC input frequency | 50 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 300 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| LED indicators | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Other features
| Specification | Value |
|---|---|
| Output voltage note | 3.3V, 5V, +12V1, +12V2, -12V, +5Vsb |
| Power over Ethernet (PoE) | No |
| Power supply type | AC/DC |
| Redundant power supply (RPS) support | No |
