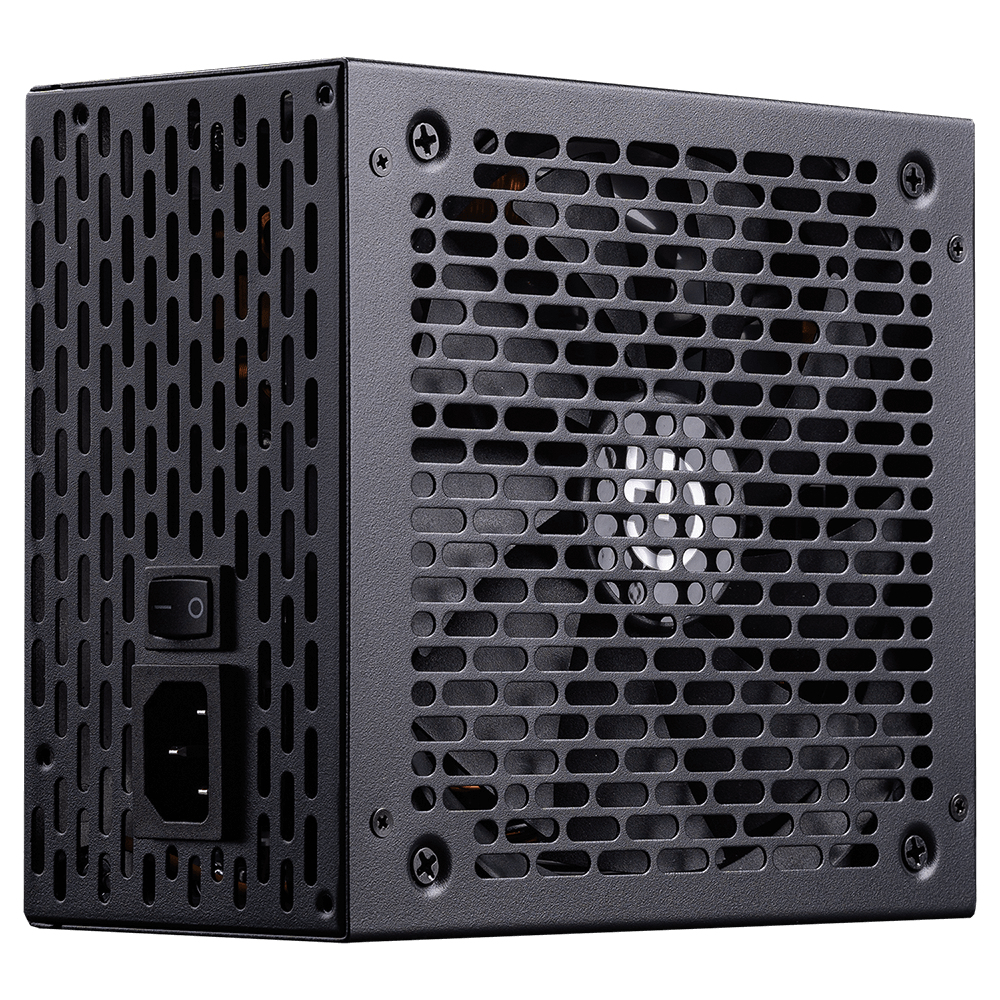

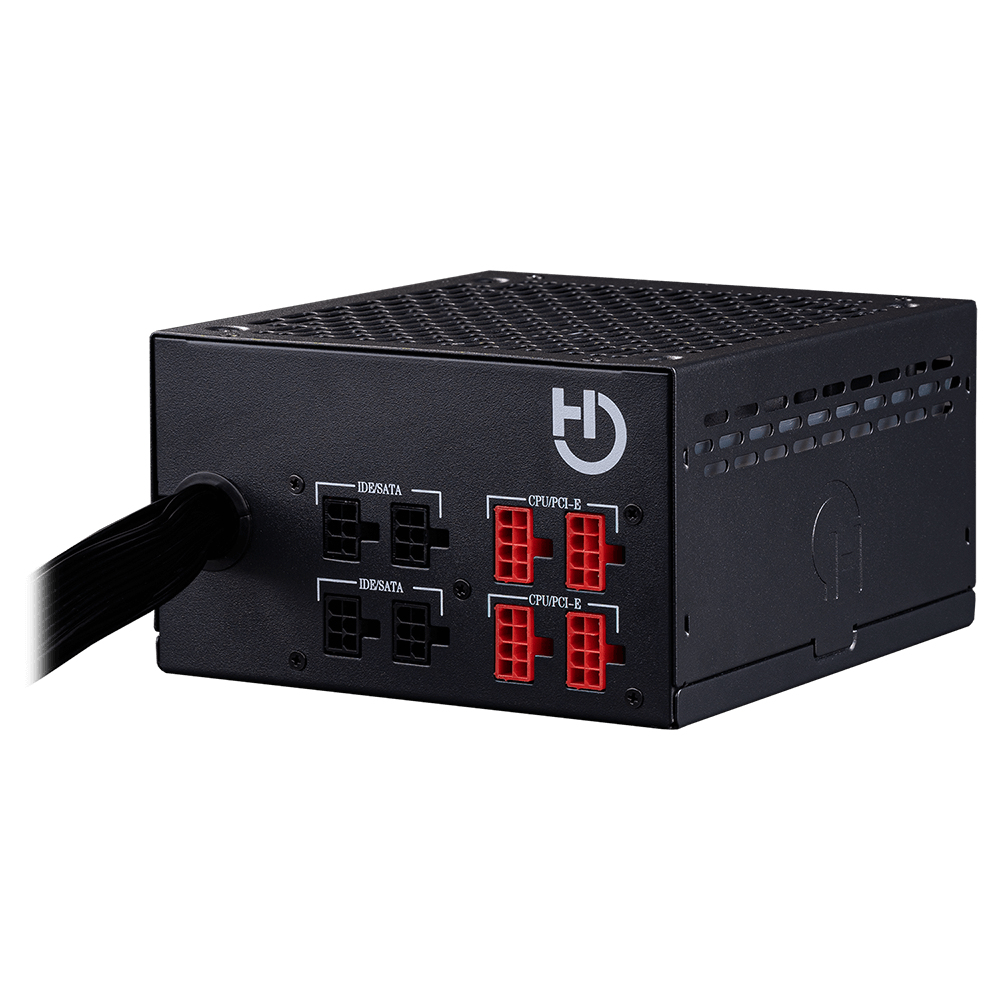

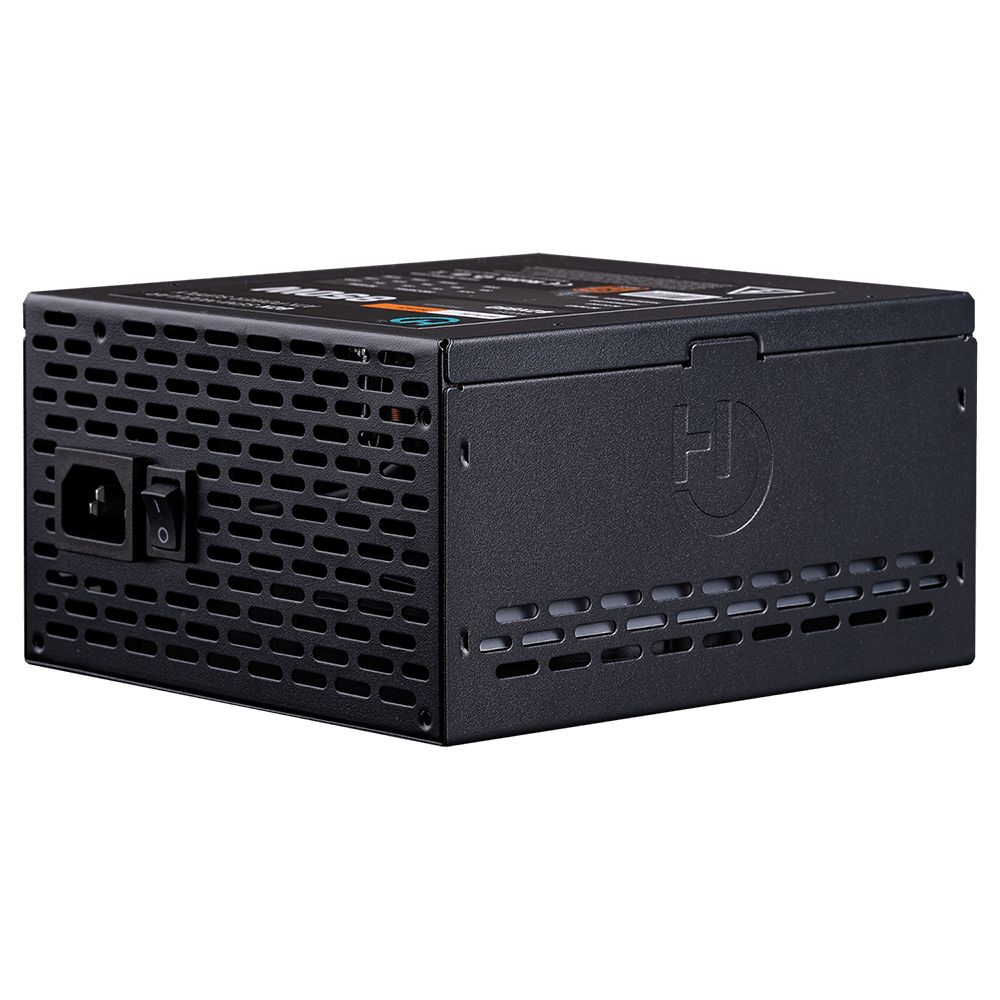

BZX750 power supply unit
750 W 20+4 pin ATX ATX Black
Model BZX750Part no. PSU010036EAN 8436545693063
38 specifications
- Weight1.75 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- BZX750
- Part numbers
- PSU010036, 2504022216572, PSU010024, PSU010024-R
- EAN / UPC
- 8436545693063, 8436545693322, 2504022216572
- Also known as
- Hiditec BZX750 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 600 mm |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 55 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 160 mm |
| Weight | 1.75 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
