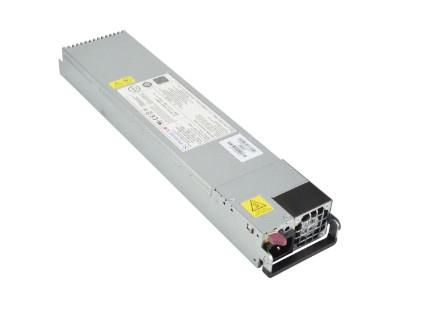

PWS-802A-1R power supply unit
800 W 1U Grey
Model PWS-802A-1R
18 specifications
- Weight2.5 kg
- ColourGrey
- Total power800 W
- PurposeServer
- Width76 mm
Overview
- Weight
- 2.5 kg
- Colour
- Grey
- Total power
- 800 W
- Purpose
- Server
- Width
- 76 mm
- Brand
- Ernitec
- Category
- Power Supply Unit
- Model
- PWS-802A-1R
- Part number
- PWS-802A-1R
- Also known as
- Ernitec PWS-802A-1R power supply unit 800 W 1U Grey
Specifications
18 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 800 W |
| AC input voltage | 100 - 240 V |
| Input current | 5 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+12V) | 66 A |
| Max output current (+5Vsb) | 4 A |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | 1U |
| 80 PLUS certification | 80 PLUS Titanium |
| Mean time between failures (MTBF) | 200000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 336 mm |
| Height | 40 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.9 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
