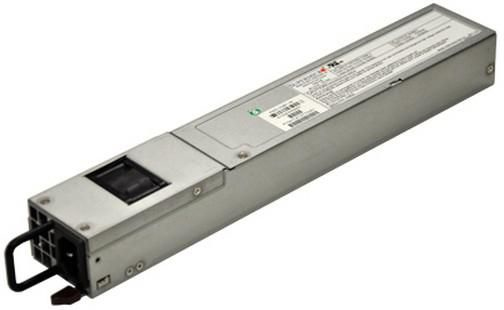

E-PWS-704P-1R power supply unit
700 W 1U Silver
Model E-PWS-704P-1REAN 5715063009468
16 specifications
- Weight400 g
- ColourSilver
- Total power700 W
- PurposeServer
- Width55 mm
Overview
- Weight
- 400 g
- Colour
- Silver
- Total power
- 700 W
- Purpose
- Server
- Width
- 55 mm
- Brand
- Ernitec
- Category
- Power Supply Unit
- Model
- E-PWS-704P-1R
- Part number
- E-PWS-704P-1R
- EAN / UPC
- 5715063009468
- Also known as
- Ernitec E-PWS-704P-1R power supply unit 700 W 1U Silver
Specifications
16 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| Input current | 8.5 A |
| Max output current (+12V) | 62 A |
| Max output current (+5Vsb) | 3 A |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | 1U |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 320 mm |
| Height | 40 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 500 g |
