D-Link 240W Universal AC input / Full range DIN Power Supply
Model DIS-N240-48EAN 790069437854
18 specifications
- ColourStainless steel
- Total power240 W
- Operating temperature (T-T)-20 - 70 °C
- Width63 mm
Overview
- Colour
- Stainless steel
- Total power
- 240 W
- Operating temperature (T-T)
- -20 - 70 °C
- Width
- 63 mm
- Brand
- D-Link
- Category
- Power Supply Unit
- Model
- DIS-N240-48
- Part number
- DIS-N240-48
- EAN / UPC
- 790069437854
- Also known as
- D-Link 240W Universal AC input / Full range DIN Power Supply
Specifications
18 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 240 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2.5/115VC, 1.3/230VC |
| Power factor | 0.98 |
| Efficiency | 88.5% |
| Hold time | 28 ms |
| Power protection features | Over voltage, Overheating, Overload |
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 113.5 mm |
| Height | 125.2 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Rise time | 100 ms |
Compare D-Link 240W Universal AC input / Full range DIN Power Supply
Compare any products- D-Link 240W Universal AC input / Full range DIN Power Supply vsD-Link 60W Ultra slim design withCompare specs
- D-Link 240W Universal AC input / Full range DIN Power Supply vsD-Link 480W Universal AC input / Full range DIN Power SupplyCompare specs
- D-Link 240W Universal AC input / Full range DIN Power Supply vsD-Link 30W Ultra slim design withCompare specs
- D-Link 240W Universal AC input / Full range DIN Power Supply vsFSP Hydro PTM+Compare specs

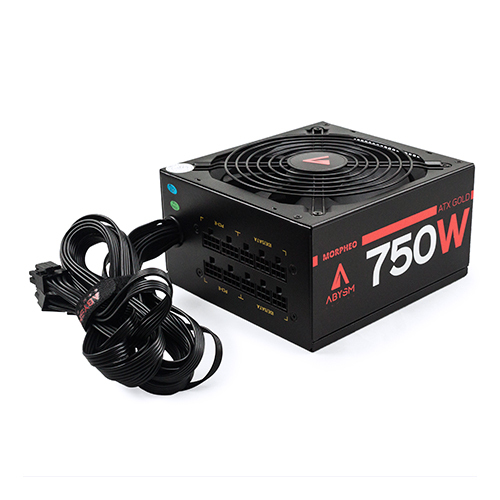

- D-Link 240W Universal AC input / Full range DIN Power Supply vsABYSM Morpheo power supply unitCompare specs

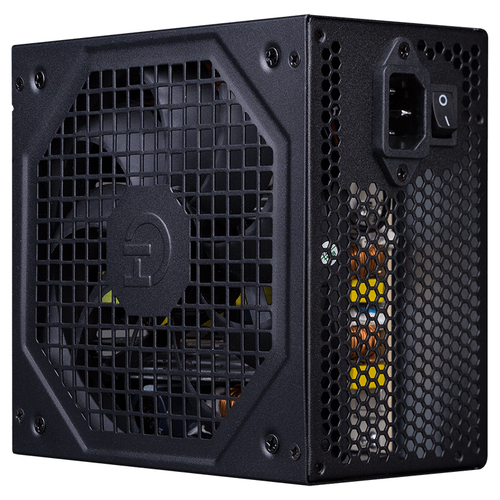

- D-Link 240W Universal AC input / Full range DIN Power Supply vsHiditec BZ-650 80Plus BronzeCompare specs
