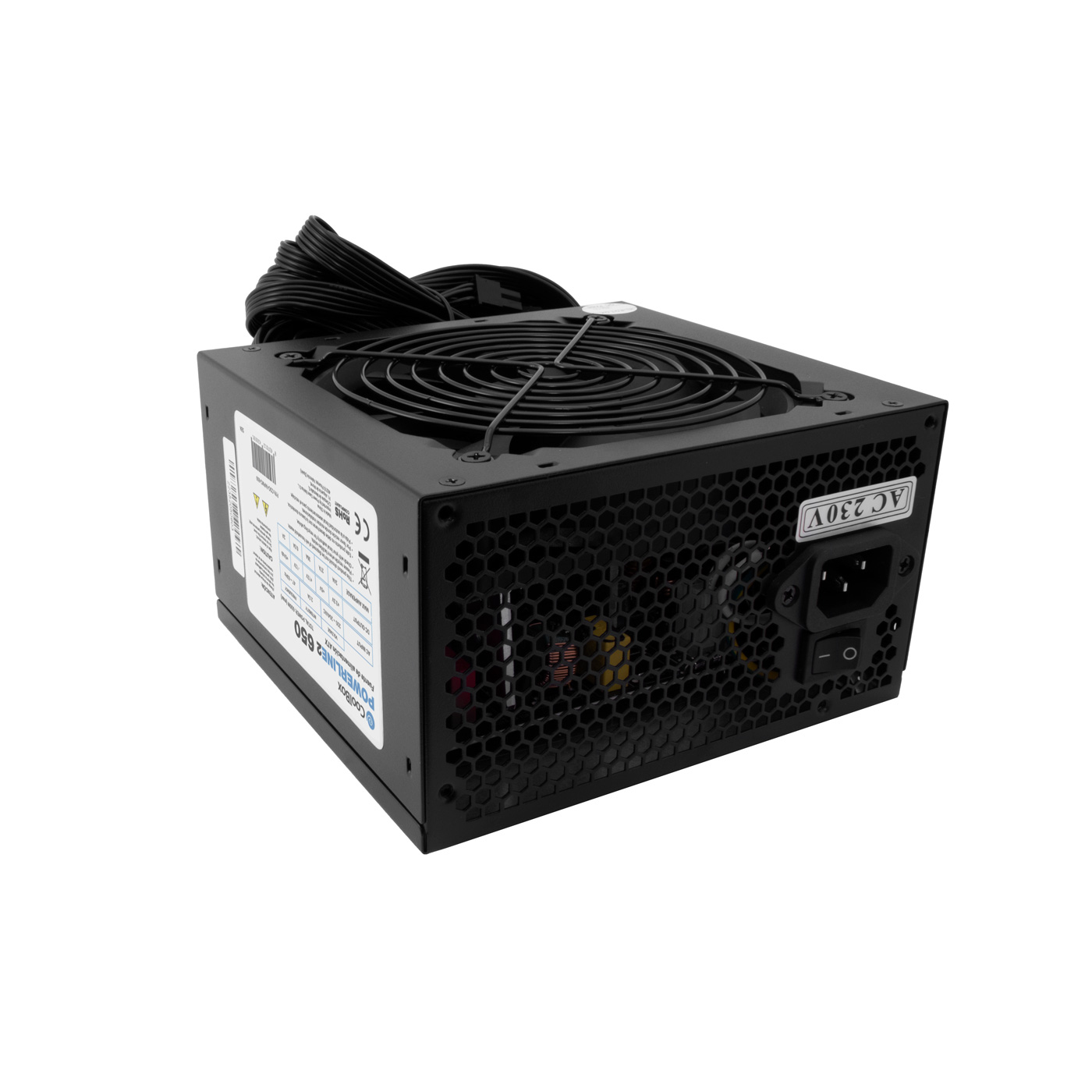

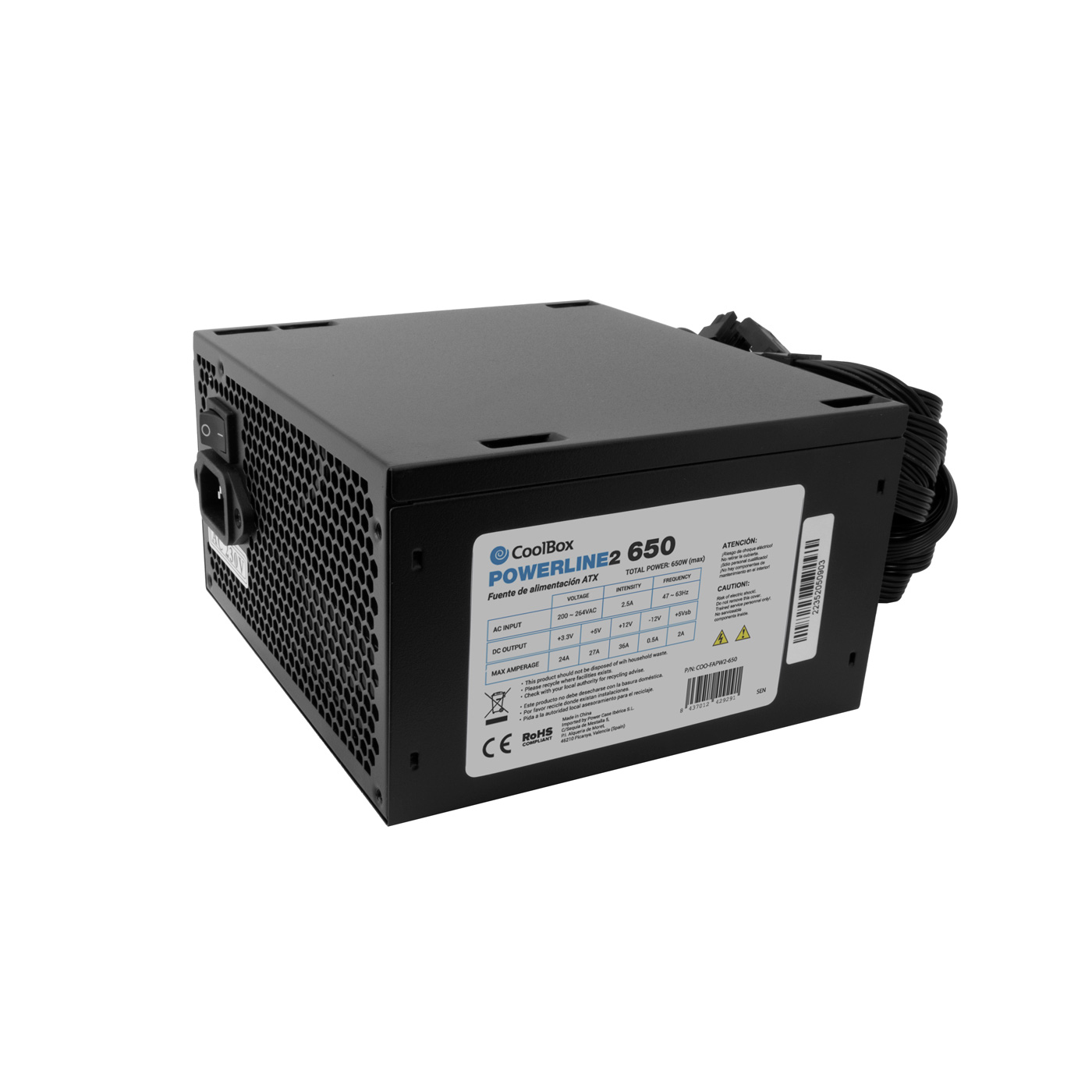

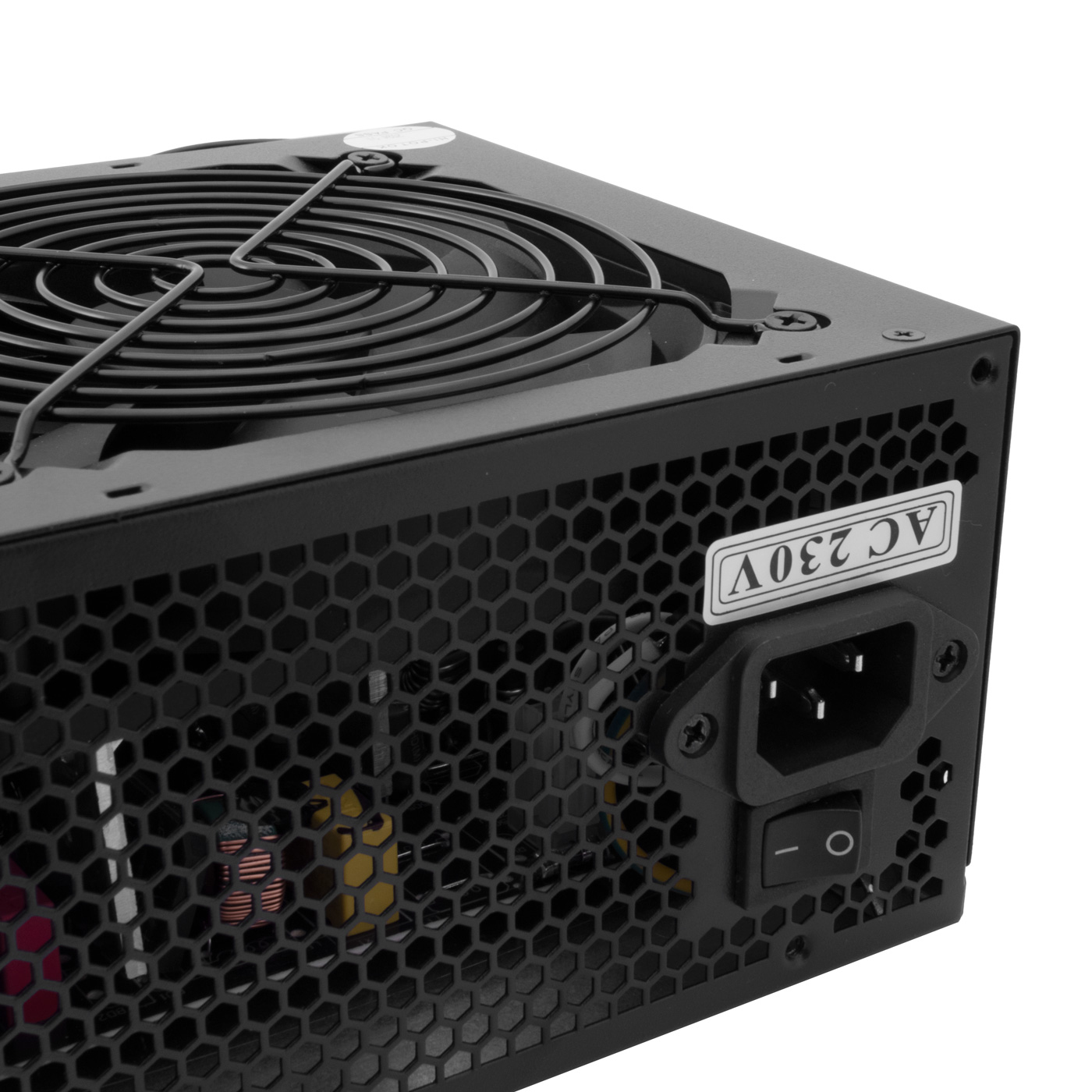

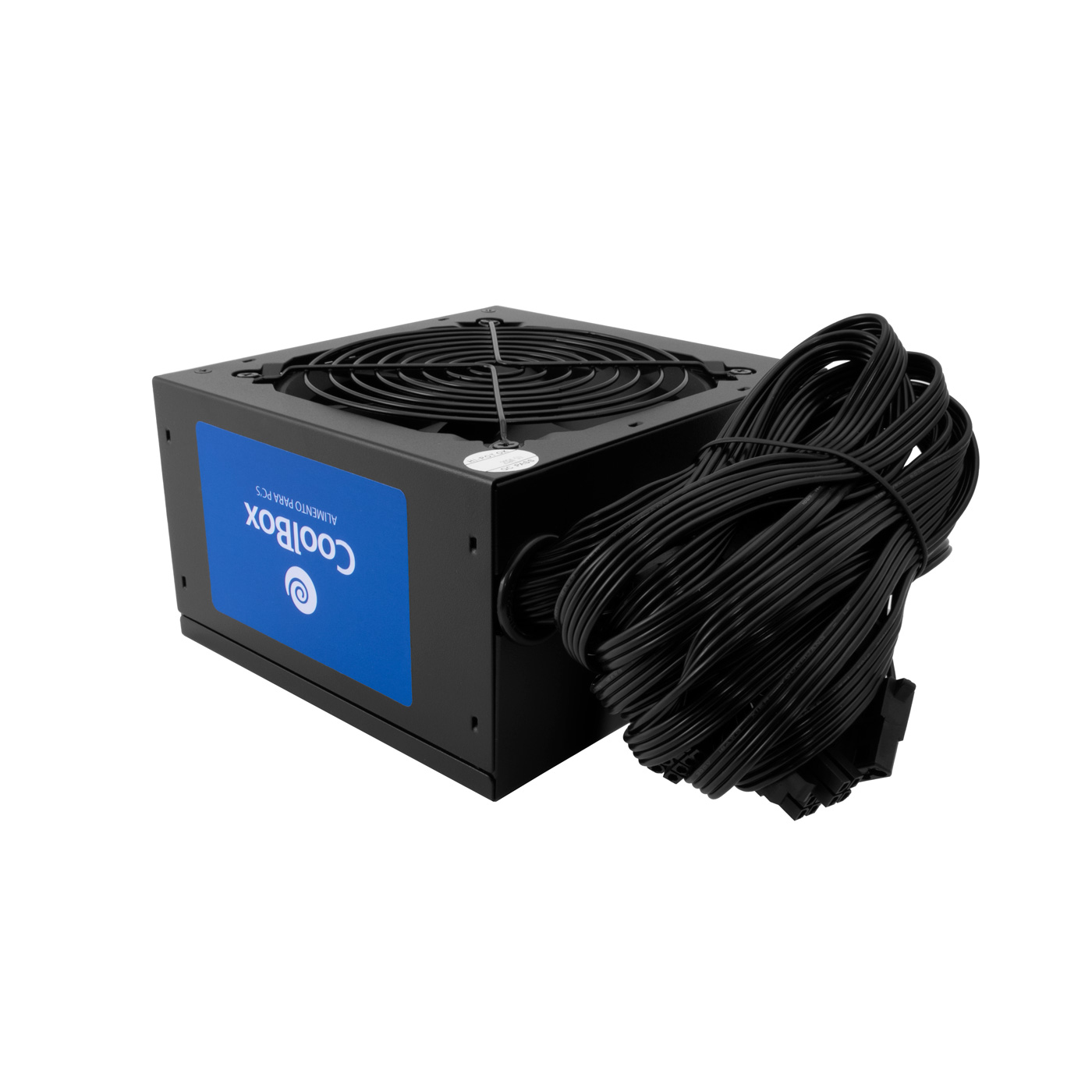

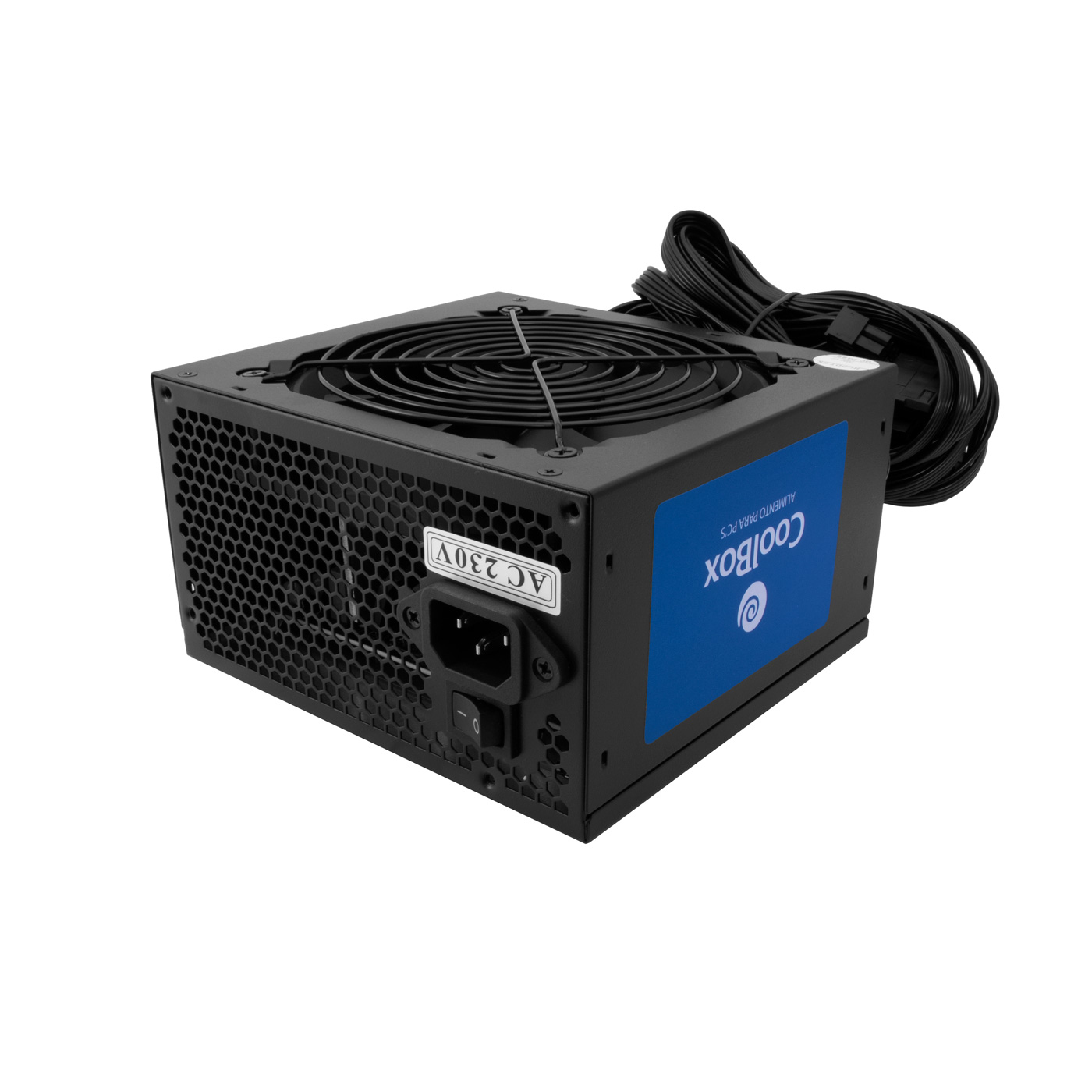

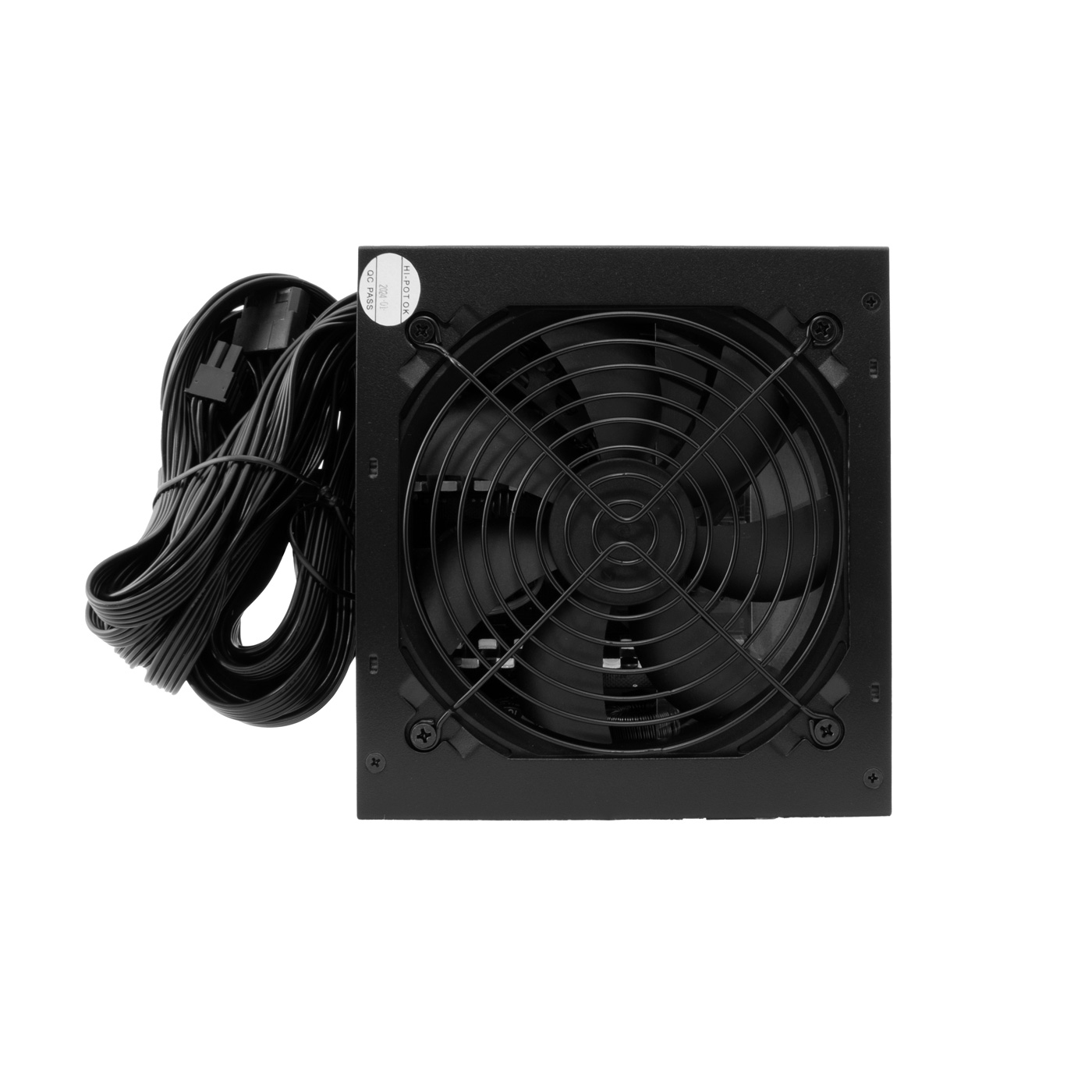

COO-FAPW2-650 power supply unit
650 W 20+4 pin ATX ATX Black
Model COO-FAPW2-650EAN 8437012429291
45 specifications
- Weight1.1 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)-10 - 35 °C
Overview
- Weight
- 1.1 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- -10 - 35 °C
- Brand
- CoolBox
- Category
- Power Supply Unit
- Model
- COO-FAPW2-650
- Part number
- COO-FAPW2-650
- EAN / UPC
- 8437012429291
- Also known as
- CoolBox COO-FAPW2-650 power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
45 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 36 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Hold time | 17 ms |
| Power Good signal delay range | 100 - 500 ms |
| Power protection features | Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500,650 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 700 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 35 °C |
| Storage temperature (T-T) | 5 - 95 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
