Product comparison · 2 power supply units

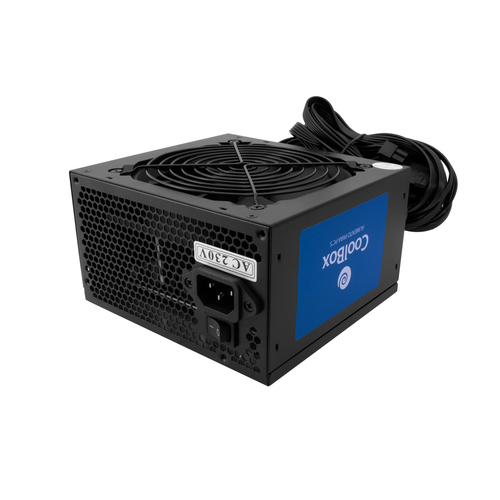

CoolBox COO-FAPW2-650 power supply unit vs CoolBox Powerline III 650

35specifications compared
15differ
20identical
20known for one product only

Key differences

AC input voltage
- COO-FAPW2-650 power supply unit:200 - 264 V
- Powerline III 650:115 - 230 V
AC input frequency
- COO-FAPW2-650 power supply unit:47 - 63 Hz
- Powerline III 650:50 Hz
Input current
- COO-FAPW2-650 power supply unit:2.5 A
- Powerline III 650:6 A
Max output current (+3.3V)
- COO-FAPW2-650 power supply unit:24 A
- Powerline III 650:25 A
Max output current (+12V)
- COO-FAPW2-650 power supply unit:36 A
- Powerline III 650:38 A
Max output current (+5V)
- COO-FAPW2-650 power supply unit:27 A
- Powerline III 650:22 A
Max output current (+5Vsb)
- COO-FAPW2-650 power supply unit:2 A
- Powerline III 650:2.5 A
Hold time
- COO-FAPW2-650 power supply unit:17 ms
- Powerline III 650:16 ms

Side by side

Differences highlightedShow differences only

Comparison of COO-FAPW2-650, Powerline III 650
55 specifications	A CoolBox COO-FAPW2-650 power supply unit Model COO-FAPW2-650 View product	B CoolBox Powerline III 650 View product
Power9 differ
Total power	650 W	650 W
AC input voltageDiffers	200 - 264 V	115 - 230 V
AC input frequencyDiffers	47 - 63 Hz	50 Hz
Input currentDiffers	2.5 A	6 A
Power factor	0.9	0.9
Power Factor Correction (PFC) type	Active	Active
Max output current (+3.3V)Differs	24 A	25 A
Max output current (+12V)Differs	36 A	38 A
Max output current (+5V)Differs	27 A	22 A
Max output current (-12V)	0.5 A	0.5 A
Max output current (+5Vsb)Differs	2 A	2.5 A
Efficiency	85%	85%
Hold timeDiffers	17 ms	16 ms
Power Good signal delay range	100 - 500 ms	100 - 500 ms
Power protection featuresDiffers	Over voltage, Short circuit	Over power, Over voltage, Short circuit, Under voltage
Combined power (+3.3V)Known for one	Unknown — not stated by the source	190 W
Combined power (+12V)Known for one	Unknown — not stated by the source	456 W
Combined power (+5V)Known for one	Unknown — not stated by the source	190 W
Combined power (-12V)Known for one	Unknown — not stated by the source	6 W
Combined power (+5Vsb)Known for one	Unknown — not stated by the source	12.5 W
Ports & interfaces2 differ
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Motherboard power cable lengthDiffers	50 cm	55 cm
Number of SATA power connectors	4	4
SATA power cable lengthKnown for one	500,650 mm	Unknown — not stated by the source
Peripheral (Molex) power connectors (4-pin)	2	2
Peripheral (Molex) power cable lengthKnown for one	700 mm	Unknown — not stated by the source
PCI Express power connectors (6+2 pin)Differs	1	2
CPU power connector (4+4 pin)	Yes	Yes
Cabling typeKnown for one	Non-Modular	Unknown — not stated by the source
PCI Express power cable lengthKnown for one	Unknown — not stated by the source	50 cm
CPU power cable lengthKnown for one	Unknown — not stated by the source	65 cm
ATX power connector (20+4 pin)Known for one	Unknown — not stated by the source	Yes
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
Supported motherboard form factorsKnown for one	ATX	Unknown — not stated by the source
ATX versionKnown for one	2.31	Unknown — not stated by the source
Mean time between failures (MTBF)	60000 h	60000 h
Designidentical
Product colour	Black	Black
Cooling type	Active	Active
Fan diameter	12 cm	12 cm
Number of fans	1 fan(s)	1 fan(s)
Fan location	Top	Top
On/off switch	Yes	Yes
Fan speedKnown for one	Unknown — not stated by the source	690 - 1760 RPM
Operational conditions1 differ
Operating temperature (T-T)Differs	-10 - 35 °C	0 - 50 °C
Storage temperature (T-T)Known for one	5 - 95 °C	Unknown — not stated by the source
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	20 - 90%
Packaging contentidentical
Cables includedKnown for one	AC	Unknown — not stated by the source
Certificatesidentical
Compliance certificatesKnown for one	CE, RoHS	Unknown — not stated by the source
Weight & dimensions3 differ
WidthDiffers	14 mm	150 mm
DepthDiffers	150 mm	140 mm
Height	86 mm	86 mm
WeightDiffers	1.1 kg	1.23 kg
Packaging dataidentical
ManualKnown for one	Yes	Unknown — not stated by the source
Technical detailsidentical
Sustainability complianceKnown for one	Yes	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
