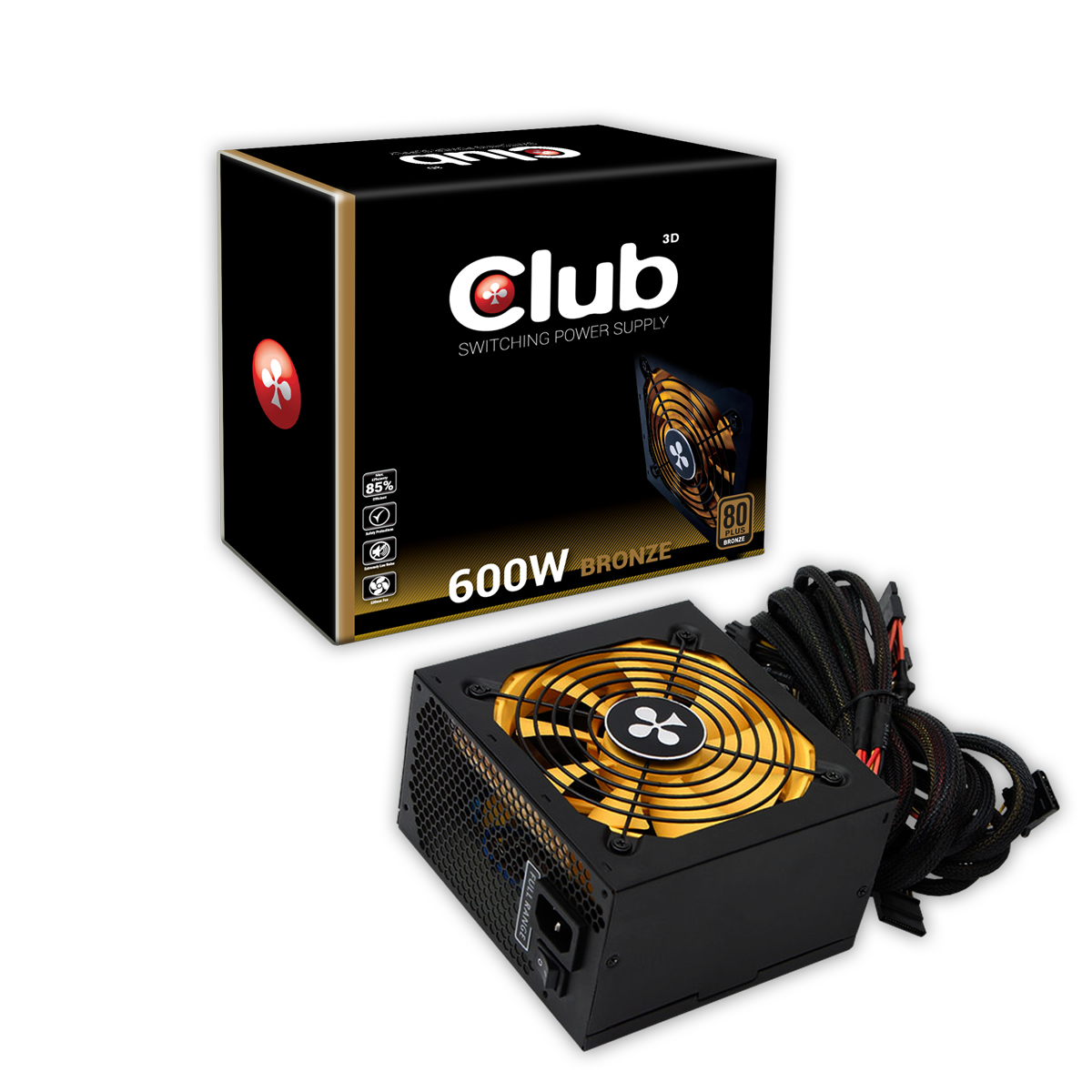

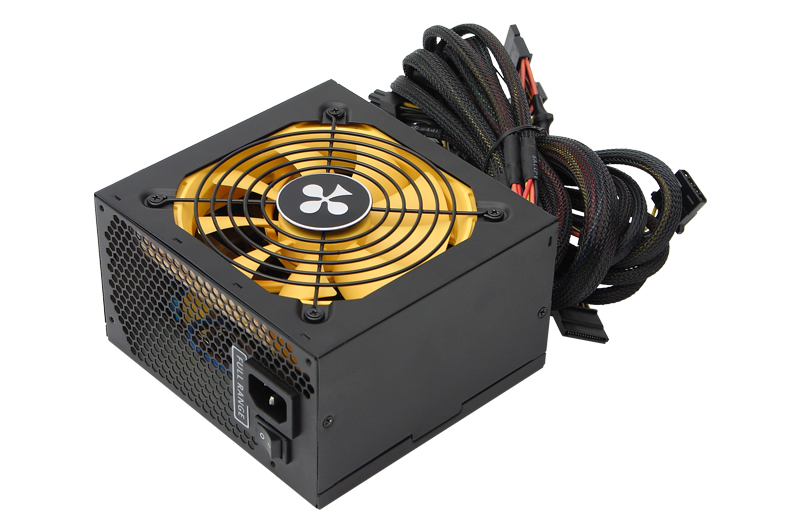

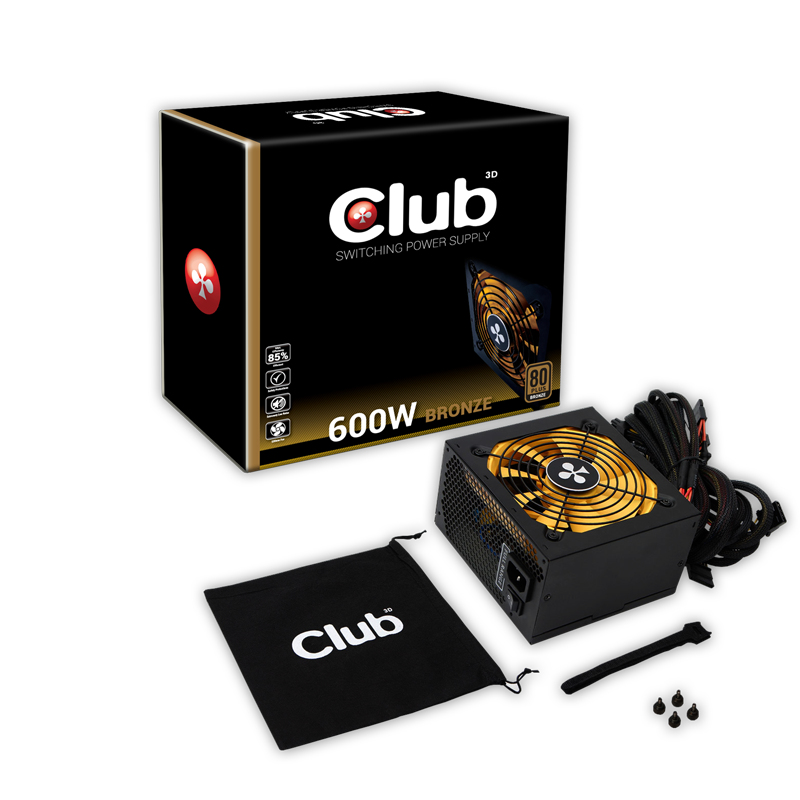

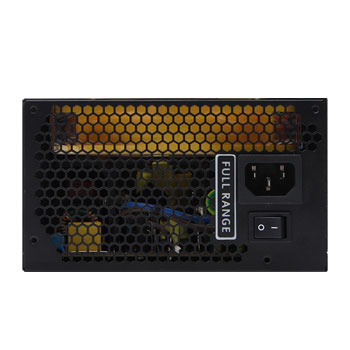

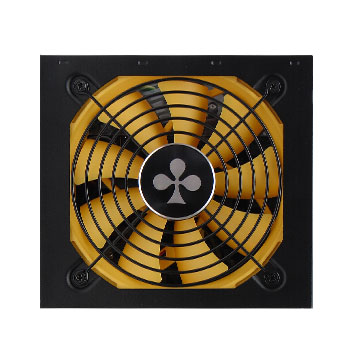

CLUB3D CSP-S600 power supply unit
600 W 20+4 pin ATX ATX Black, Yellow
Model CSP-S600EAN 8717249408697
47 specifications
- Noise16 dB
- ColourBlack, Yellow
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 16 dB
- Colour
- Black, Yellow
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- CLUB3D
- Category
- Power Supply Unit
- Model
- CSP-S600
- Part number
- CSP-S600
- EAN / UPC
- 8717249408697
- Also known as
- CLUB3D CSP-S600 power supply unit 600 W 20+4 pin ATX ATX Black, Yellow
Specifications
47 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 432 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 22 A |
| Max output current (+12V2) | 22 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 12.5 A |
| Efficiency | 85% |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Noise level | 16 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| Cooling type | Active |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, 80Plus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 165 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
| Power supply type | AC/DC |
