Product comparison · 2 power supply units

CLUB3D CSP-D700CB power supply unit vs CLUB3D CSP-S600 power supply unit

44specifications compared
17differ
27identical
8known for one product only

Key differences

Total power
- CSP-D700CB power supply unit:700 W
- CSP-S600 power supply unit:600 W
AC input voltage
- CSP-D700CB power supply unit:115 - 230 V
- CSP-S600 power supply unit:100 - 240 V
Input current
- CSP-D700CB power supply unit:15 A
- CSP-S600 power supply unit:10 A
Combined power (+3.3V)
- CSP-D700CB power supply unit:170 W
- CSP-S600 power supply unit:150 W
Combined power (+12V)
- CSP-D700CB power supply unit:679 W
- CSP-S600 power supply unit:432 W
Combined power (+5V)
- CSP-D700CB power supply unit:170 W
- CSP-S600 power supply unit:150 W
Combined power (+5Vsb)
- CSP-D700CB power supply unit:15 W
- CSP-S600 power supply unit:12.5 W
Max output current (+12V1)
- CSP-D700CB power supply unit:32 A
- CSP-S600 power supply unit:22 A

Side by side

Differences highlightedShow differences only

Comparison of CSP-D700CB, CSP-S600

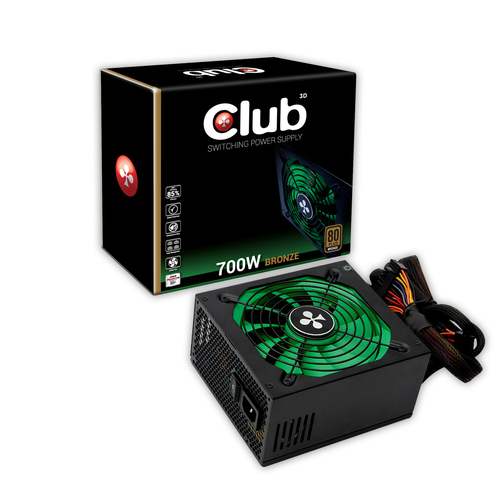

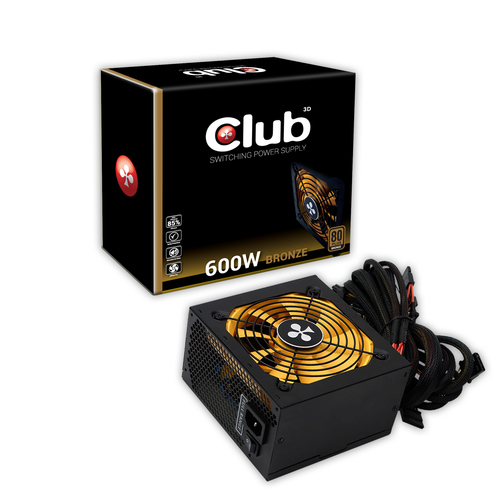

52 specifications	A CLUB3D CSP-D700CB power supply unit Model CSP-D700CB View product	B CLUB3D CSP-S600 power supply unit Model CSP-S600 View product
Power12 differ
Total powerDiffers	700 W	600 W
AC input voltageDiffers	115 - 230 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Input currentDiffers	15 A	10 A
Combined power (+3.3V)Differs	170 W	150 W
Combined power (+12V)Differs	679 W	432 W
Combined power (+5V)Differs	170 W	150 W
Combined power (-12V)	6 W	6 W
Combined power (+5Vsb)Differs	15 W	12.5 W
Max output current (+3.3V)	24 A	24 A
Max output current (+12V1)Differs	32 A	22 A
Max output current (+12V2)Differs	32 A	22 A
Max output current (+12V3)Known for one	32 A	Unknown — not stated by the source
Max output current (+12V4)Known for one	32 A	Unknown — not stated by the source
Max output current (+5V)Differs	30 A	24 A
Max output current (-12V)	0.5 A	0.5 A
Max output current (+5Vsb)Differs	3 A	12.5 A
EfficiencyDiffers	89%	85%
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage	Over current, Over power, Over voltage, Short circuit, Under voltage
Power Factor Correction (PFC) typeKnown for one	Unknown — not stated by the source	Active
Hold timeKnown for one	Unknown — not stated by the source	17 ms
Ports & interfaces1 differ
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Number of SATA power connectors	6	6
Peripheral (Molex) power connectors (4-pin)	5	5
PCI Express power connectors (6-pin)Known for one	2	Unknown — not stated by the source
PCI Express power connectors (8-pin)Differs	2	1
CPU power connector (4+4 pin)	Yes	Yes
ATX power connector (20+4 pin)	Yes	Yes
Floppy disk drive connector	Yes	Yes
Floppy drive power connector	1	1
PCI Express connector	Yes	Yes
Cabling typeKnown for one	Semi-Modular	Unknown — not stated by the source
Performance1 differ
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX version	2.4	2.4
Noise levelDiffers	10 dB	16 dB
EPS versionKnown for one	Unknown — not stated by the source	2.92
Design2 differ
Product colourDiffers	Black, Green	Black, Yellow
Cooling type	Active	Active
Fan diameterDiffers	13.5 cm	12 cm
Number of fansKnown for one	1 fan(s)	Unknown — not stated by the source
On/off switch	Yes	Yes
Certificatesidentical
Compliance certificates	RoHS	RoHS
Certification	CE, 80Plus	CE, 80Plus
Weight & dimensionsidentical
Width	150 mm	150 mm
Depth	165 mm	165 mm
Height	86 mm	86 mm
Packaging dataidentical
Manual	Yes	Yes
Technical detailsidentical
Sustainability certificates	ENERGY STAR	ENERGY STAR
Other features1 differ
Dimensions (WxDxH)Differs	150 x 165 x 86 mm	150 x 140 x 86 mm
Power supply type	AC/DC	AC/DC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
