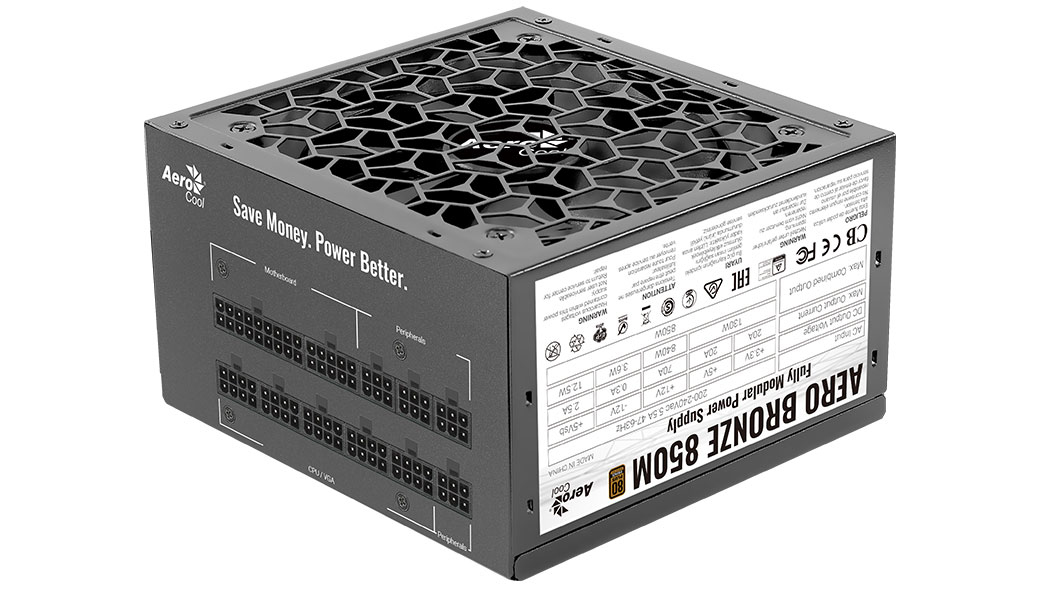

Aero Bronze 850M
Model Aero Bronze 850MPart no. ACPB-AR85AKC.1MEAN 4710562758993
27 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- Aero Bronze 850M
- Part number
- ACPB-AR85AKC.1M
- EAN / UPC
- 4710562758993
- Also known as
- Aerocool Aero Bronze 850M power supply unit 850 W 20+4 pin ATX Black
Specifications
27 specifications in 5 groups

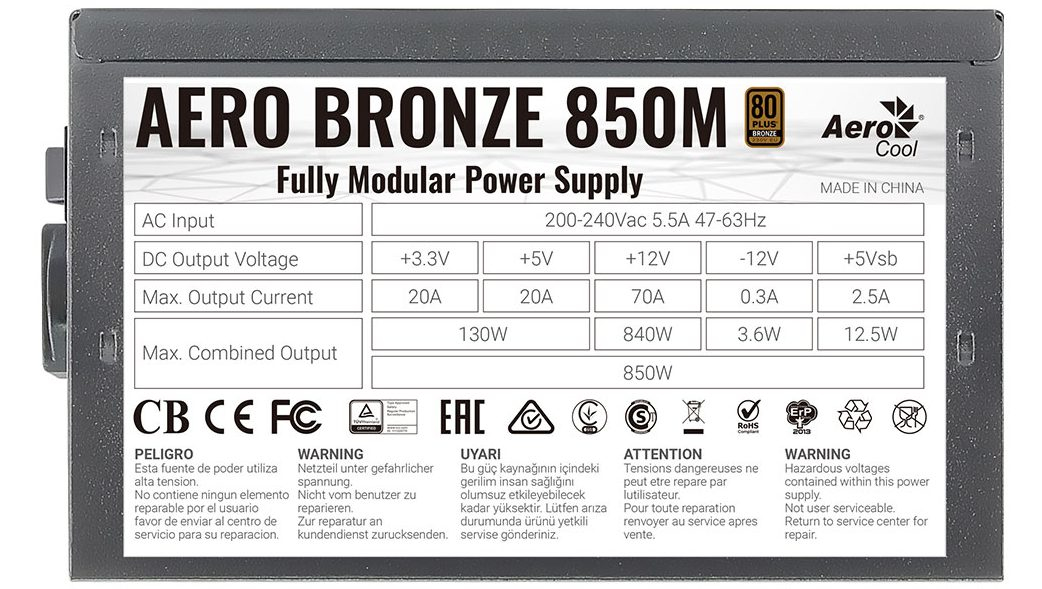

Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5.5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 12.5 A |
| Efficiency | 90% |

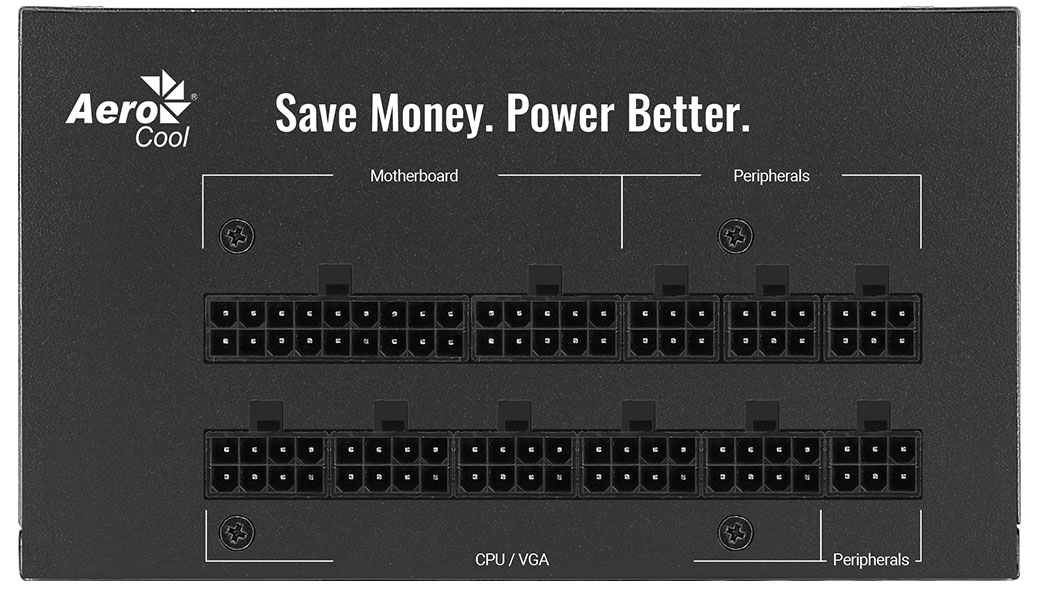

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |

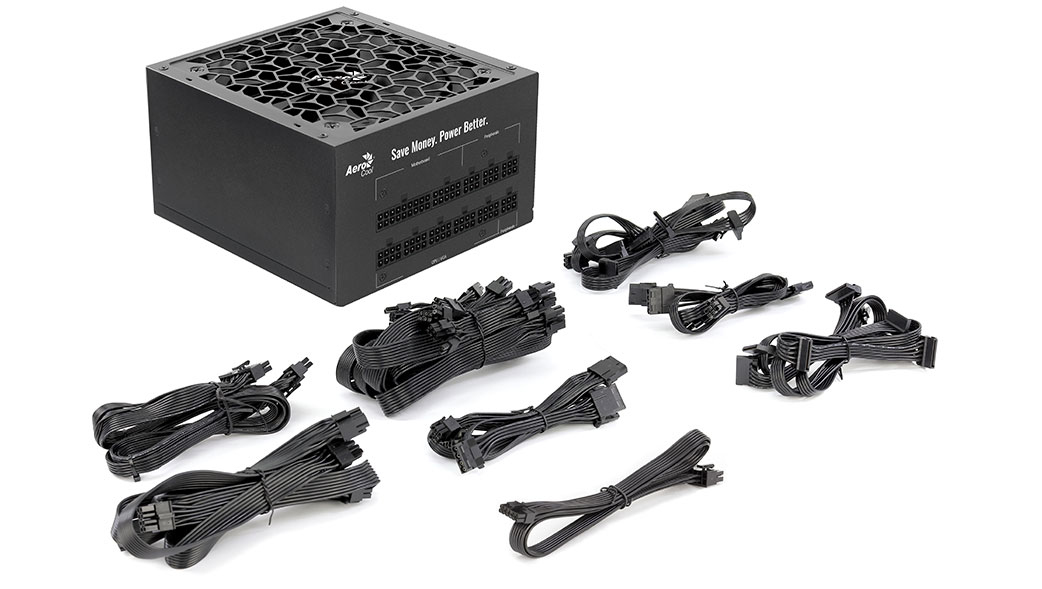

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

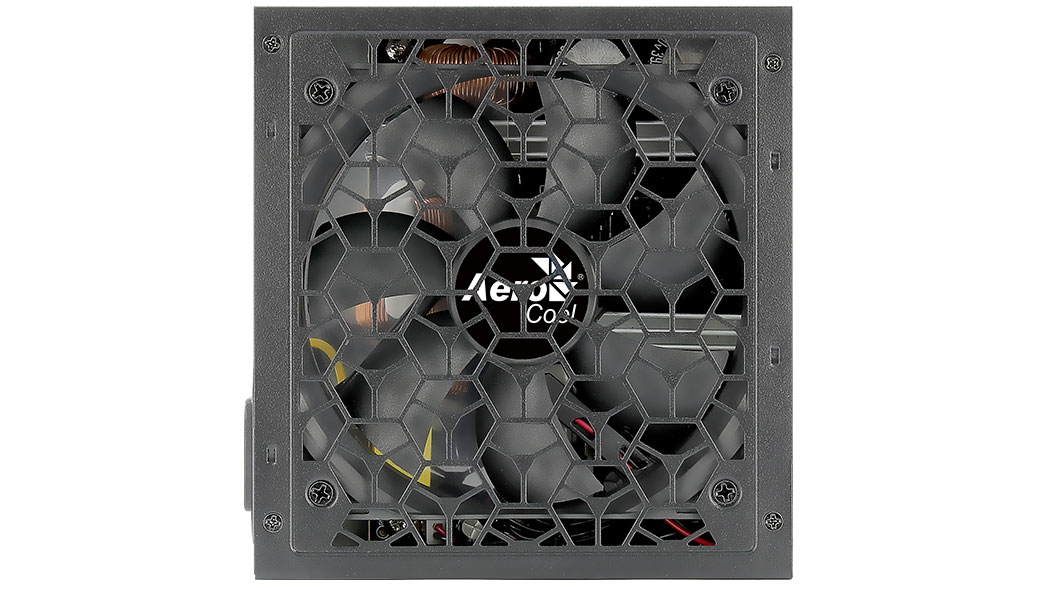

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
