Product comparison · 2 power supply units

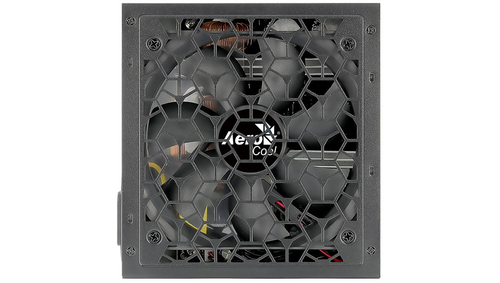

Aerocool AERO BRONZE 750M vs Aerocool Aero Bronze 850M

26specifications compared
6differ
20identical
9known for one product only

Key differences

Total power
- AERO BRONZE 750M:750 W
- Aero Bronze 850M:850 W
Combined power (+12V)
- AERO BRONZE 750M:744 W
- Aero Bronze 850M:850 W
Max output current (+12V)
- AERO BRONZE 750M:62 A
- Aero Bronze 850M:70 A
Max output current (+5Vsb)
- AERO BRONZE 750M:2.5 A
- Aero Bronze 850M:12.5 A
Efficiency
- AERO BRONZE 750M:91%
- Aero Bronze 850M:90%
Purpose
- AERO BRONZE 750M:PC
- Aero Bronze 850M:PC/Server

Side by side

Differences highlightedShow differences only

Comparison of AERO BRONZE 750M, Aero Bronze 850M
35 specifications	A Aerocool AERO BRONZE 750M View product	B Aerocool Aero Bronze 850M View product
Power5 differ
Total powerDiffers	750 W	850 W
AC input voltage	200 - 240 V	200 - 240 V
AC input frequency	47 - 63 Hz	47 - 63 Hz
Input current	5.5 A	5.5 A
Combined power (+3.3V)	130 W	130 W
Combined power (+12V)Differs	744 W	850 W
Combined power (+5V)	130 W	130 W
Combined power (-12V)	3.6 W	3.6 W
Combined power (+5Vsb)	12.5 W	12.5 W
Max output current (+3.3V)	20 A	20 A
Max output current (+12V)Differs	62 A	70 A
Max output current (+5V)	20 A	20 A
Max output current (-12V)	0.3 A	0.3 A
Max output current (+5Vsb)Differs	2.5 A	12.5 A
EfficiencyDiffers	91%	90%
Ports & interfacesidentical
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Number of PATA power connectors	4	4
Number of SATA power connectors	6	6
PCI Express power connectors (6+2 pin)	4	4
CPU power connector (4+4 pin)	Yes	Yes
Cabling type	Fully-Modular	Fully-Modular
Performance1 differ
PurposeDiffers	PC	PC/Server
Power supply unit (PSU) form factorKnown for one	ATX	Unknown — not stated by the source
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX versionKnown for one	2.52	Unknown — not stated by the source
Designidentical
Product colour	Black	Black
Cooling typeKnown for one	Active	Unknown — not stated by the source
Fan diameter	12 cm	12 cm
Number of fans	1 fan(s)	1 fan(s)
Certificatesidentical
Compliance certificatesKnown for one	RoHS	Unknown — not stated by the source
Packaging dataidentical
Package widthKnown for one	235 mm	Unknown — not stated by the source
Package depthKnown for one	195 mm	Unknown — not stated by the source
Package heightKnown for one	95 mm	Unknown — not stated by the source
Package typeKnown for one	Box	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	84733020

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
