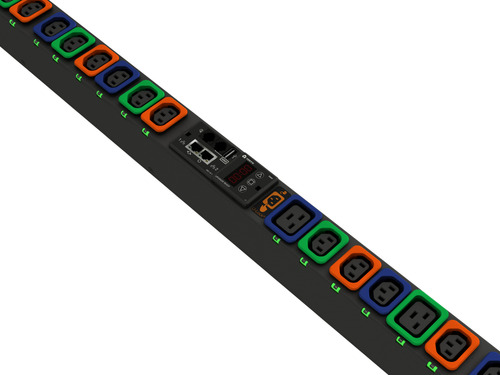

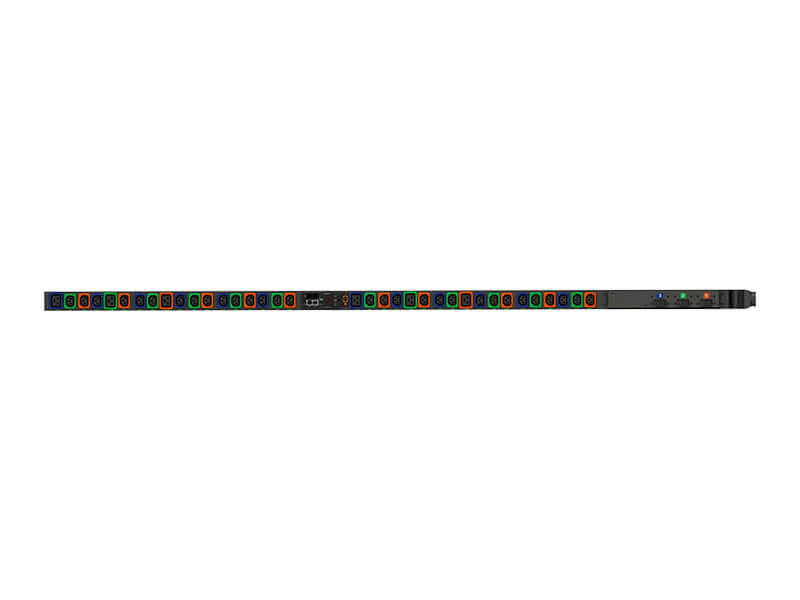

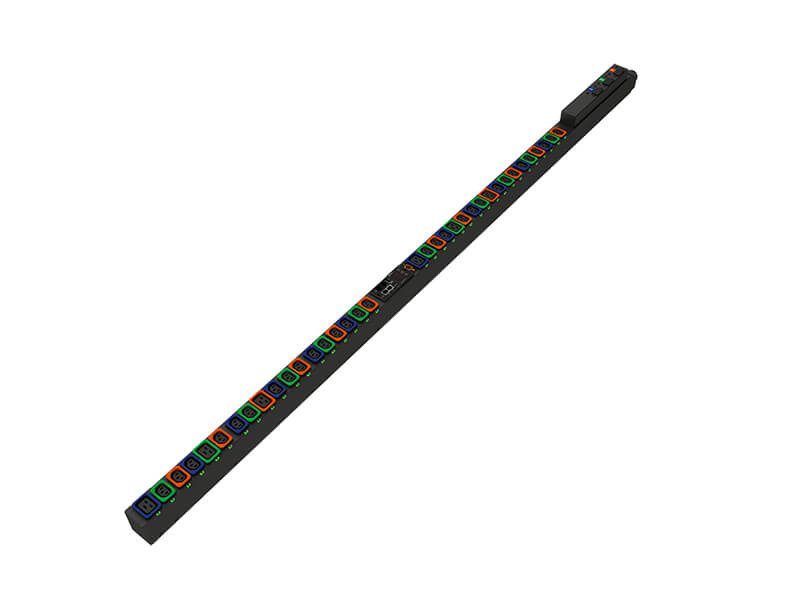

Geist Universal Rack PDU with Next Generation IMD, 16A-48A
208V-415V, 11kW, (30) U-Lock C13 and (6) U-Lock C19 Receptacles, VP7UU0A0
Model VP7UU0A0EAN 767041044539
25 specifications
- Power11000 W
- TypeSingle-phase
- Weight12.2 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Single-phase
- Weight
- 12.2 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VP7UU0A0
- Part number
- VP7UU0A0
- EAN / UPC
- 767041044539, 4061471344655
- Also known as
- Vertiv Geist Universal Rack PDU with Next Generation IMD, 16A-48A, 208V-415V, 11kW, (30) U-Lock C13 and (6) U-Lock C19 Receptacles, VP7UU0A0
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 240/415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 48 A |
| Output voltage | 240 V |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | China RoHS, RoHS, Trade Agreements Act (TAA) |
| Certification | UL & c-UL Listed 60950, CE Marked, Complies with EN 55032 and EN 55024, Complies with IEC 60950-1 (CB Certificate Available), RCM Mark (EMC Only), FCC Part 15 Class A Conformance |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 66 mm |
| Height | 1829 mm |
| Weight | 12.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
