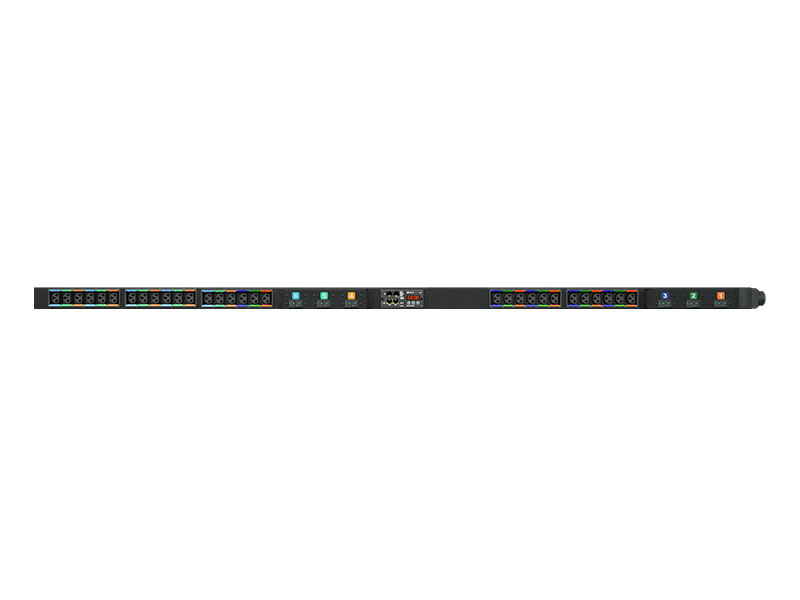

Geist Universal Rack PDU with Next-Generation IMD, 32A-63A, 22kW Power Capacity
208V-415V, (30) Combination C13/C19 outlets, VP4UV0A2
Model VP4UV0A2EAN 406147134392
24 specifications
- ColourBlack
- PDU typesMonitored
- AC outlets quantity30 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Power, Voltage
- Nominal input voltage240/415 V
Overview
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 30 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Power, Voltage
- Nominal input voltage
- 240/415 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VP4UV0A2
- Part number
- VP4UV0A2
- EAN / UPC
- 406147134392, 767041044522, 4061471343924
- Also known as
- Vertiv Geist Universal Rack PDU with Next-Generation IMD, 32A-63A, 22kW Power Capacity, 208V-415V, (30) Combination C13/C19 outlets, VP4UV0A2
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 240/415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 63 A |
| Output voltage | 240 V |
| Load capacity | 240 VA |
| Power protection features | Over current |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 64 mm |
| Height | 1682 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.53 kg |
