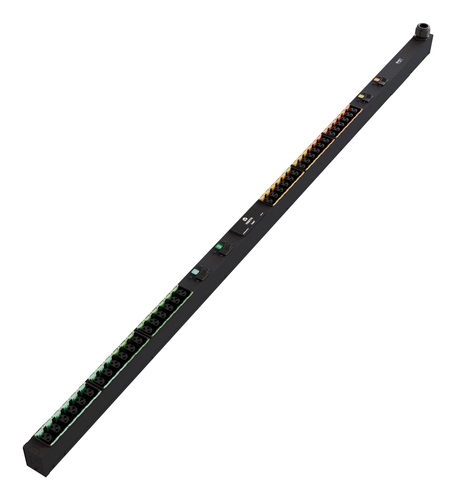

PowerIT rack power distribution unit, 14.4kW, 1P+N+E (IP44), TAA Compliance, RoHS, China RoHS, UL/CE dual listed
Model VP1U60A1EAN 767041047134
24 specifications
- Power14400 W
- TypeSingle-phase
- Weight8.62 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
Overview
- Power
- 14400 W
- Type
- Single-phase
- Weight
- 8.62 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VP1U60A1
- Part number
- VP1U60A1
- EAN / UPC
- 767041047134
- Also known as
- Vertiv PowerIT rack power distribution unit, 14.4kW, 1P+N+E (IP44), TAA Compliance, RoHS, China RoHS, UL/CE dual listed
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | Type E / Type F |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3.048 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 240 V |
| Maximum current | 63 A |
| Maximum power | 14400 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88.9 mm |
| Depth | 1778 mm |
| Height | 50.8 mm |
| Weight | 8.62 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.62 kg |
| Package width | 279.4 mm |
| Package depth | 2209.8 mm |
| Package height | 177.8 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
