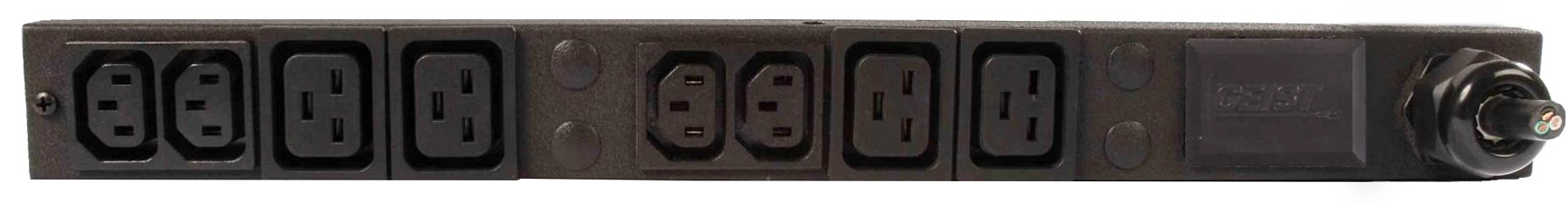

VHVLN082-102I44TL6 power distribution unit (PDU) 8 AC outlet(s) 0U Black
Model VHVLN082-102I44TL6Part no. 11029
22 specifications
- TypeSingle-phase
- Weight2.72 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity8 AC outlet(s)
- Cable length3.05 m
Overview
- Type
- Single-phase
- Weight
- 2.72 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 8 AC outlet(s)
- Cable length
- 3.05 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VHVLN082-102I44TL6
- Part number
- 11029
- Also known as
- Vertiv VHVLN082-102I44TL6 power distribution unit (PDU) 8 AC outlet(s) 0U Black
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Block 1 output current | 15 A |
| Block 2 output current | 20 A |
| Output voltage | 208 V |
| Load capacity | 208 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 47 mm |
| Height | 432 mm |
| Weight | 2.72 kg |
