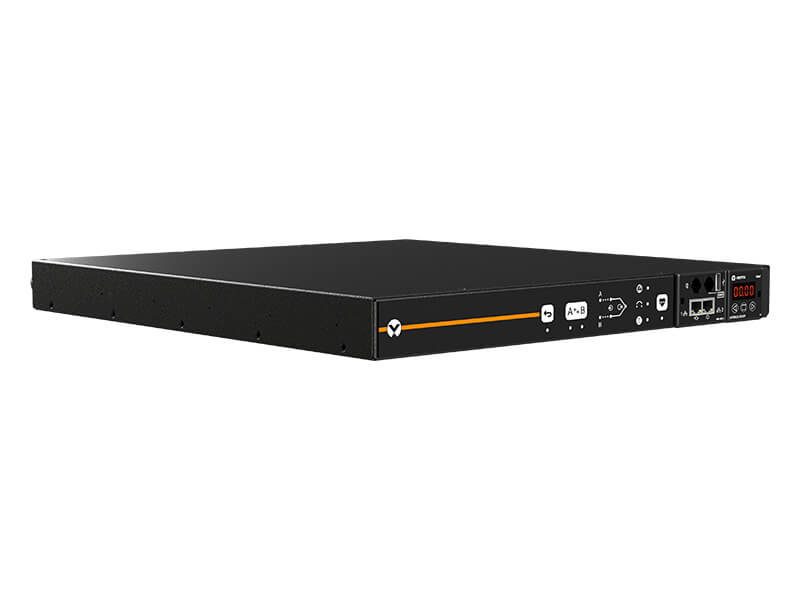

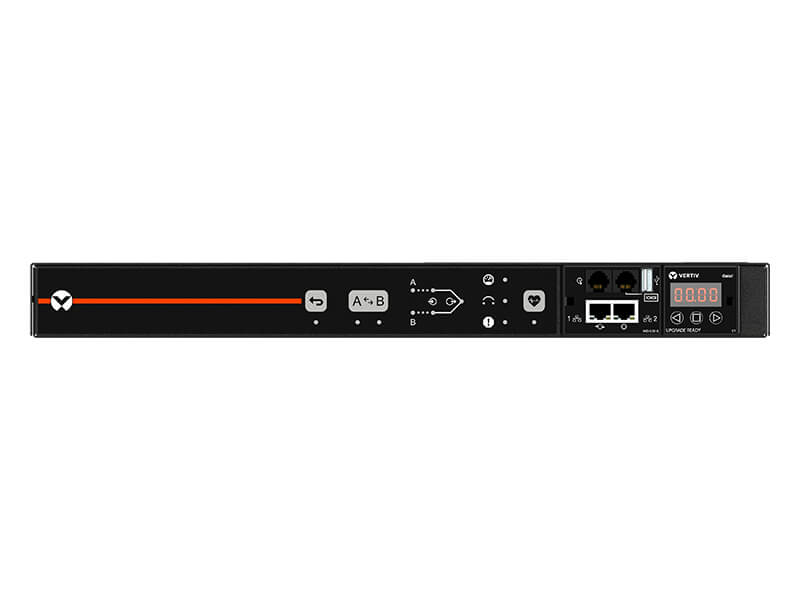

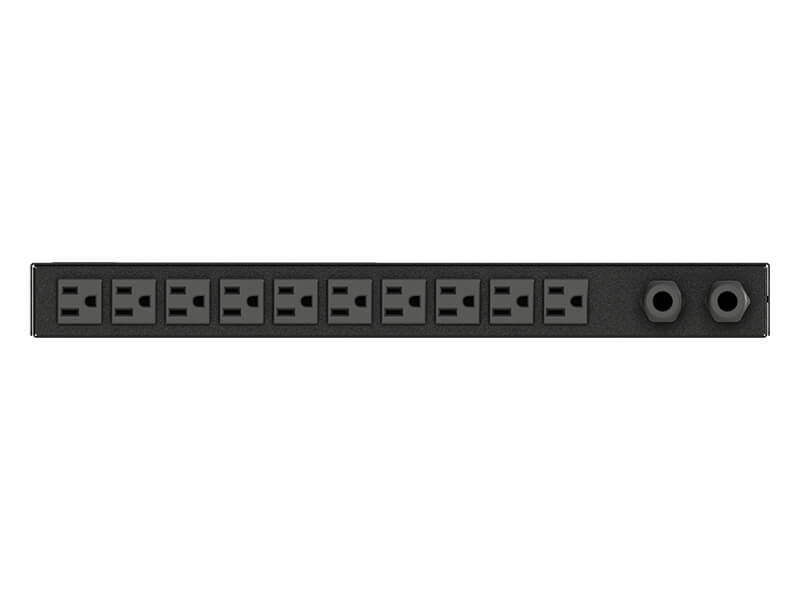

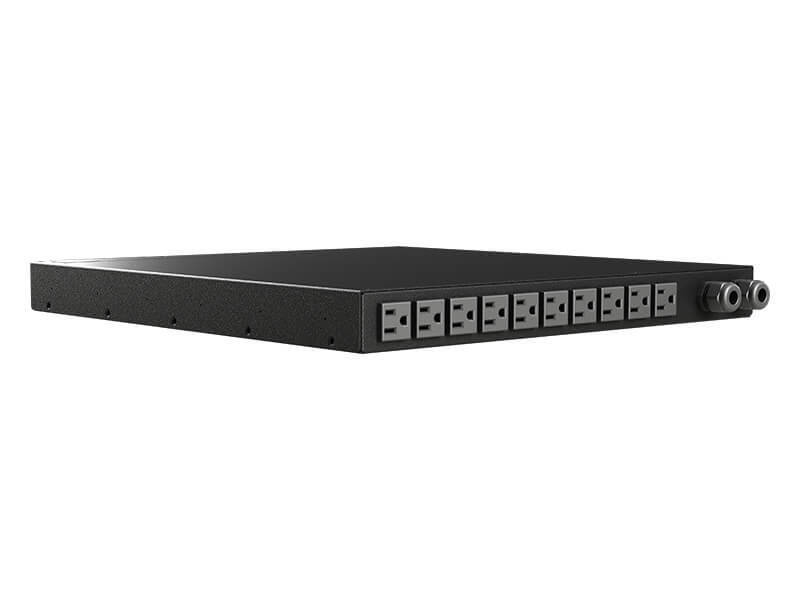

VA4N1100 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model VA4N1100Part no. 15558
23 specifications
- Power1400 W
- TypeSingle-phase
- Weight7.71 kg
- ColourBlack
- PDU typesMonitored, Switched
- AC outlets quantity10 AC outlet(s)
Overview
- Power
- 1400 W
- Type
- Single-phase
- Weight
- 7.71 kg
- Colour
- Black
- PDU types
- Monitored, Switched
- AC outlets quantity
- 10 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VA4N1100
- Part number
- 15558
- Also known as
- Vertiv VA4N1100 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
23 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | NEMA 5–15P |
| AC outlet types | NEMA 5–15R |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 15 A |
| Output voltage | 120 V |
| Maximum power | 1400 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Certification | FCC, UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 7.71 kg |
