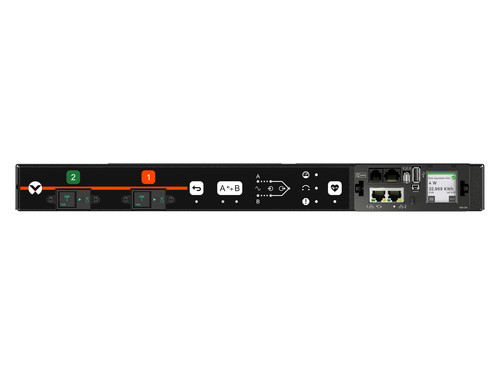

Geist VA4G31A0 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Model VA4G31A0
22 specifications
- Power7300 W
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity12 AC outlet(s)
- MonitoringCurrent, Power, Voltage
Overview
- Power
- 7300 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 12 AC outlet(s)
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- VA4G31A0
- Part number
- VA4G31A0
- Also known as
- Vertiv Geist VA4G31A0 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Modbus TCP/IP, Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| Maximum current | 32 A |
| Load capacity | 230 VA |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Mark, UKCA Mark, Complies with IEC 62368-1, RCM Mark (EMC Only) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 457.2 mm |
| Height | 43.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.62 kg |
