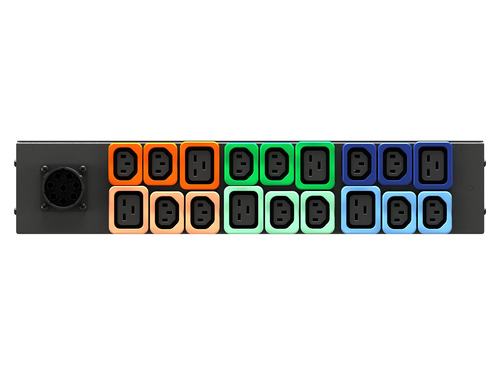

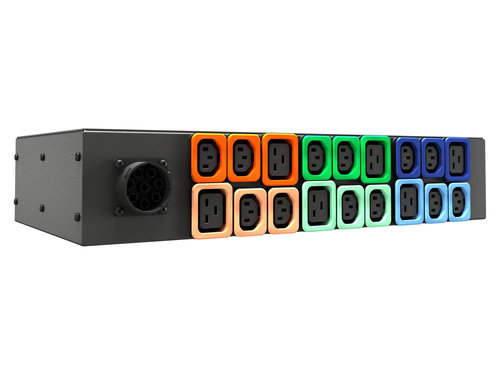

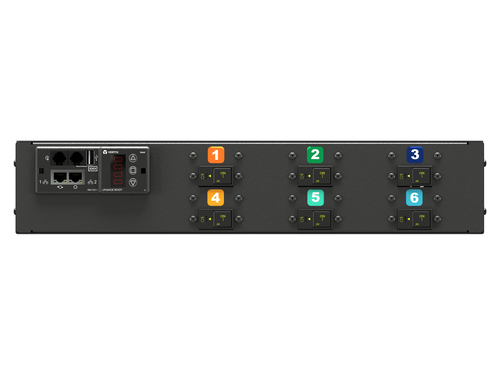

UI30005L power distribution unit (PDU) 18 AC outlet(s) 2U Black
Model UI30005LEAN 4061471339170
20 specifications
- Weight7.26 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity18 AC outlet(s)
- LED indicatorsNo
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 7.26 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 18 AC outlet(s)
- LED indicators
- No
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- UI30005L
- Part number
- UI30005L
- EAN / UPC
- 4061471339170
- Also known as
- Vertiv UI30005L power distribution unit (PDU) 18 AC outlet(s) 2U Black
Specifications
20 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | No |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Load capacity | 22000 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, UL, CB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 432 mm |
| Height | 229 mm |
| Weight | 7.26 kg |
