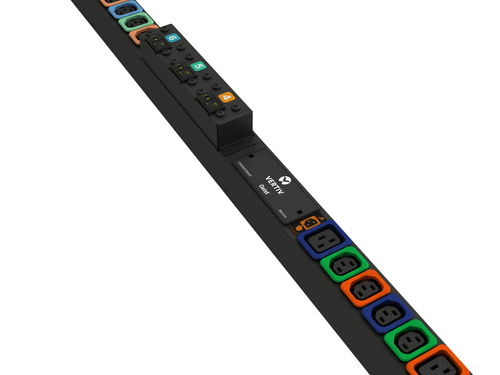

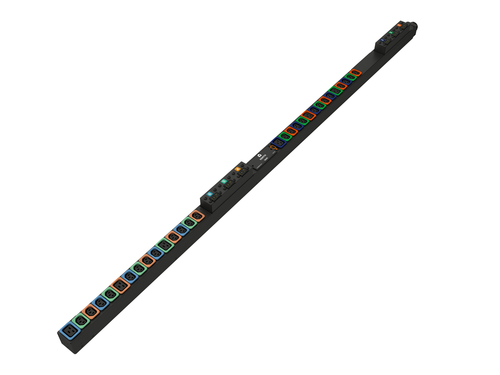

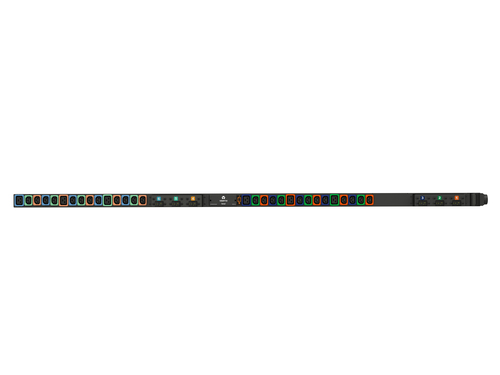

UI10024L power distribution unit (PDU) 30 AC outlet(s) 0U Black
Model UI10024LEAN 4061471339163
20 specifications
- Weight9.53 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity30 AC outlet(s)
- LED indicatorsNo
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 9.53 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 30 AC outlet(s)
- LED indicators
- No
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- UI10024L
- Part number
- UI10024L
- EAN / UPC
- 4061471339163
- Also known as
- Vertiv UI10024L power distribution unit (PDU) 30 AC outlet(s) 0U Black
Specifications
20 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | No |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Load capacity | 22000 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, UL, CB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1778 mm |
| Depth | 51 mm |
| Height | 58 mm |
| Weight | 9.53 kg |
