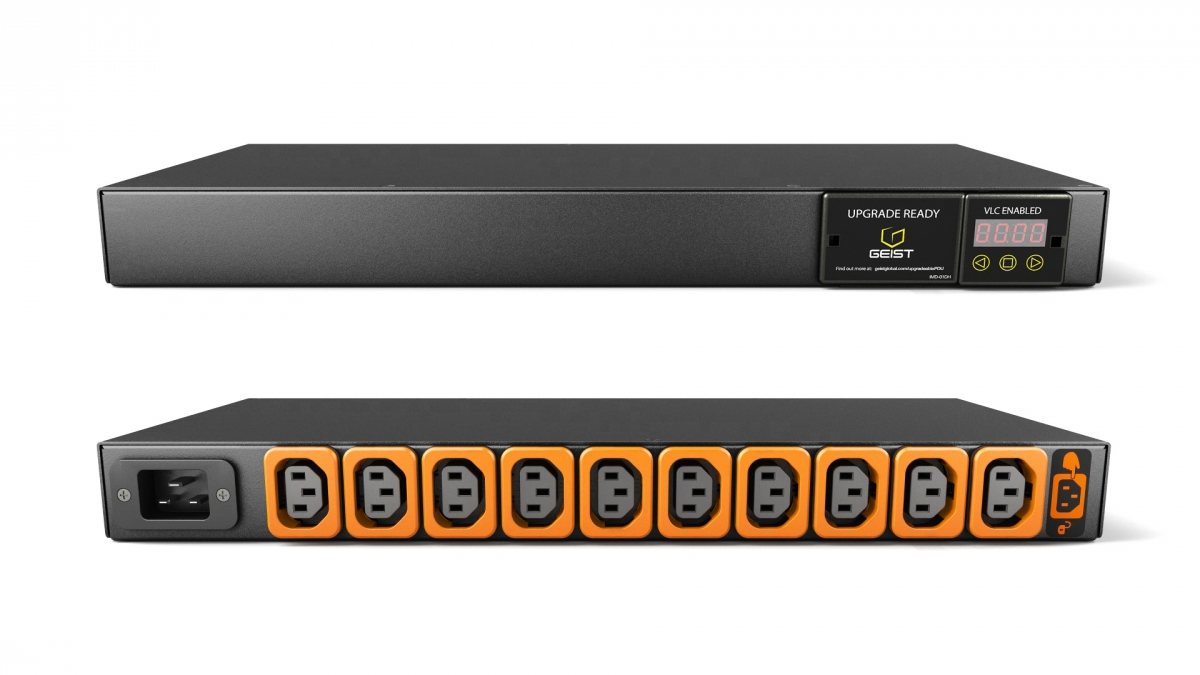

UI10016L power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model UI10016LEAN 4061471342705
19 specifications
- Weight4.54 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity10 AC outlet(s)
- Nominal input voltage230 V
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 4.54 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 10 AC outlet(s)
- Nominal input voltage
- 230 V
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- UI10016L
- Part number
- UI10016L
- EAN / UPC
- 4061471342705
- Also known as
- Vertiv UI10016L power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
19 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Load capacity | 3700 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | - CE Marked - RoHS Compliant & China RoHS - Complies with IEC 60950-1 (CB Certificate Available) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 432 mm |
| Height | 216 mm |
| Weight | 4.54 kg |
