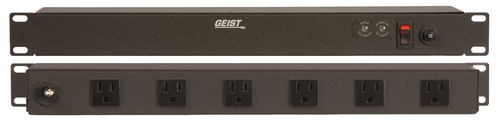

SPT064-10 power distribution unit (PDU) 6 AC outlet(s) Black
Model SPT064-10Part no. 29424
21 specifications
- Weight2.72 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity6 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage100-120 V
Overview
- Weight
- 2.72 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 6 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 100-120 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- SPT064-10
- Part number
- 29424
- Also known as
- Vertiv SPT064-10 power distribution unit (PDU) 6 AC outlet(s) Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | NEMA 5–15P |
| AC outlet types | NEMA 5–15R |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 15 A |
| Block 1 output current | 15 A |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
| Operating temperature (T-T) | 50 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 95.2 mm |
| Height | 43.6 mm |
| Weight | 2.72 kg |
