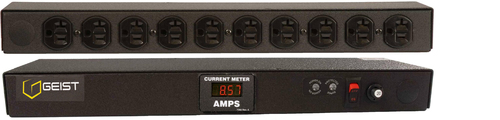

Geist SPFA104-1025 power distribution unit (PDU) 10 AC outlet(s) 0U Black
Model SPFA104-1025Part no. 15093VH
24 specifications
- ColourBlack
- PDU typesMetered
- AC outlets quantity10 AC outlet(s)
- LED indicatorsPower
- MonitoringCurrent
- Nominal input voltage100-120 V
Overview
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 10 AC outlet(s)
- LED indicators
- Power
- Monitoring
- Current
- Nominal input voltage
- 100-120 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- SPFA104-1025
- Part number
- 15093VH
- Also known as
- Vertiv Geist SPFA104-1025 power distribution unit (PDU) 10 AC outlet(s) 0U Black
Specifications
24 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| LED indicators | Power |
| Cable length | 3.05 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 20 V |
| Load capacity | 120 VA |
| Power protection features | Over current |
| Surge energy rating | 720 J |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 114 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.18 kg |
