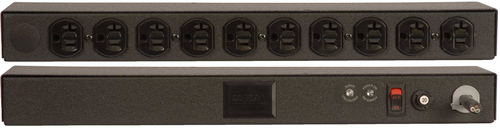

SP104-1025TL power distribution unit (PDU) 10 AC outlet(s) Black
Model SP104-1025TLPart no. 38059
21 specifications
- Weight3.18 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity10 AC outlet(s)
- LED indicatorsPower
- Nominal input voltage100-120 V
Overview
- Weight
- 3.18 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 10 AC outlet(s)
- LED indicators
- Power
- Nominal input voltage
- 100-120 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- SP104-1025TL
- Part number
- 38059
- Also known as
- Vertiv SP104-1025TL power distribution unit (PDU) 10 AC outlet(s) Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | NEMA L5-20P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| LED indicators | Power |
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Block 1 output current | 20 A |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
| Operating temperature (T-T) | 50 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 43 mm |
| Height | 94 mm |
| Weight | 3.18 kg |
