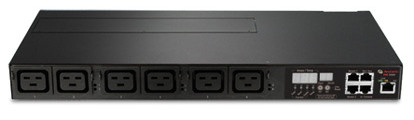

PM 3000 Horizontal Model
Model PM 3000 Horizontal ModelPart no. PM3005H-403EAN 6364300566470
16 specifications
- ColourBlack
- MountingHorizontal
- Input connection typeL15-30P
- Cable length3 m
- Nominal input voltage208 V
- Operating temperature (T-T)10 - 45 °C
Overview
- Colour
- Black
- Mounting
- Horizontal
- Input connection type
- L15-30P
- Cable length
- 3 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- 10 - 45 °C
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- PM 3000 Horizontal Model
- Part numbers
- PM3005H-403, PM3002H-401, PM3006H-401, PM3005H-404
- EAN / UPC
- 6364300566470, 636430056562, 6364300565626, 636430059952 +4 more
- Also known as
- Vertiv PM 3000 Horizontal Model power distribution unit (PDU) Black
Specifications
16 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | L15-30P |
| Output connections | (6)IEC C19 |
| I/O ports | 1 x 10/100/1000 Ethernet 2 x RJ-45 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| Maximum current | 30 A |
| Maximum total current draw per phase | 24 A |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, FCC, cUL, CE, VCCI, C-Tick, CB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43.2 mm |
| Depth | 21 mm |
| Height | 4.4 mm |
| Weight (imperial) | 3.31 kg (7.3 lbs) |
