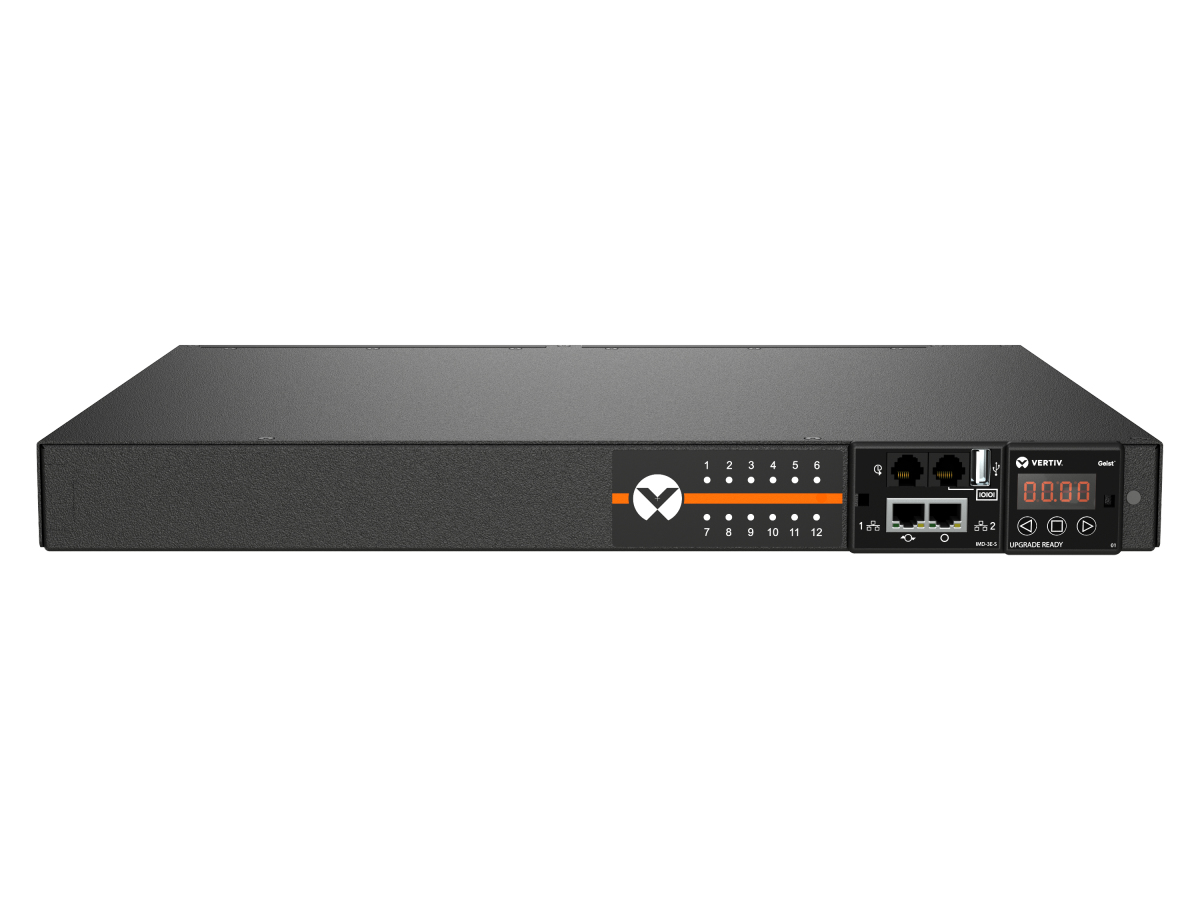

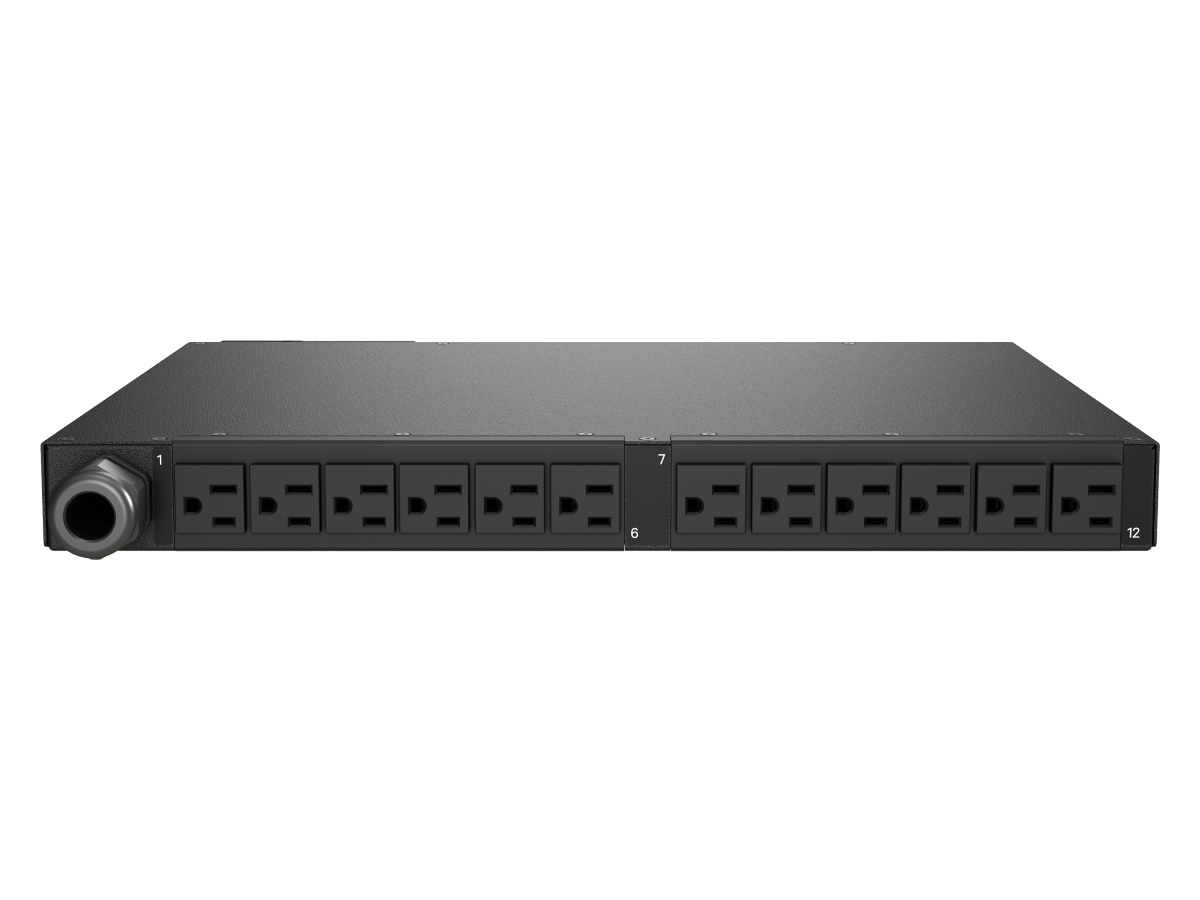

Geist NR30201 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Model NR30201
20 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity12 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Power, Voltage
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 12 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- NR30201
- Part number
- NR30201
- Also known as
- Vertiv Geist NR30201 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Specifications
20 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | NEMA 5–15P |
| AC outlet types | NEMA 5–15R |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 15 A |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS FCC Part 15 Class A UL & c-UL Listed 62368-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 305 mm |
| Height | 44 mm |
