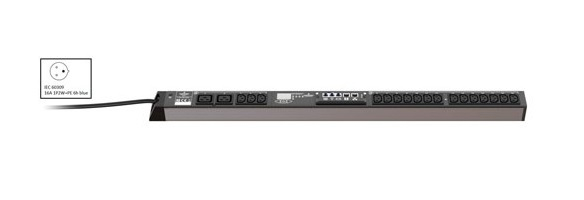

Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309

Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309

230V 16A, outputs (17)C13 (2)C19

Model MPHB3242EAN 813829019876

21 specifications
  • ColourBlack
  • PDU typesMetered
  • AC outlets quantity19 AC outlet(s)
  • LED indicatorsYes
  • Management platformWeb, CLI, SNMP, SSH, Telnet
  • Nominal input voltage230 V
See all specifications

Overview

Colour
Black
PDU types
Metered
AC outlets quantity
19 AC outlet(s)
LED indicators
Yes
Management platform
Web, CLI, SNMP, SSH, Telnet
Nominal input voltage
230 V
Brand
Vertiv
Model
MPHB3242
Part number
MPHB3242
EAN / UPC
813829019876
Also known as
Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309 230V 16A, outputs (17)C13 (2)C19

Specifications

21 specifications in 8 groups

Design

PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack

Ports & interfaces

AC outlets quantity19 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Output connections17 x C13 & 2 x C19

Features

LED indicatorsYes

Management features

Management platformWeb, CLI, SNMP, SSH, Telnet

Power

Nominal input voltage230 V
Maximum current16 A
Power protection featuresOver current

Certificates

Compliance certificatesRoHS
CertificationUL, CSA, CE, REACH, FCC Class A, CB, WEEE, ISTA

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width56 mm
Depth50 mm
Height916.5 mm
