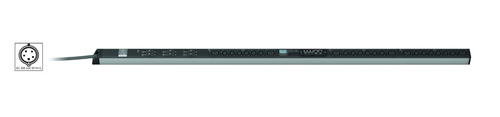

Vertiv MPH2 Rack PDU, branch metered, 0U, input C19

Vertiv MPH2 Rack PDU, branch metered, 0U, input C19

230V 16A, outputs (17)C13 (2)C19

Model MPHB3241EAN 813829017490

30 specifications
  • Weight2.3 kg
  • ColourBlack
  • PDU typesMetered
  • AC outlets quantity19 AC outlet(s)
  • LED indicatorsYes
  • MonitoringCurrent, Humidity, Temperature
See all specifications

Overview

Weight
2.3 kg
Colour
Black
PDU types
Metered
AC outlets quantity
19 AC outlet(s)
LED indicators
Yes
Monitoring
Current, Humidity, Temperature
Brand
Vertiv
Model
MPHB3241
Part number
MPHB3241
EAN / UPC
813829017490
Also known as
Vertiv MPH2 Rack PDU, branch metered, 0U, input C19 230V 16A, outputs (17)C13 (2)C19

Specifications

30 specifications in 9 groups

Design

PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack

Ports & interfaces

AC outlets quantity19 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Output connections17 x C13 & 2 x C19

Features

LED indicatorsYes

Management features

MonitoringCurrent, Humidity, Temperature
Management platformWeb, CLI, SNMP, SSH, Telnet

Power

Nominal input voltage230 V
AC input frequency50 Hz
Maximum current16 A
Load capacity3600 VA
Power protection featuresOver current

Certificates

Compliance certificatesRoHS
CertificationUL, CSA, CE, REACH, FCC Class A, CB, WEEE, ISTA

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 2000 m

Weight & dimensions

Width56 mm
Depth50 mm
Height916.5 mm
Weight2.3 kg

Packaging data

Package width137 mm
Package depth218 mm
Package height2017 mm
