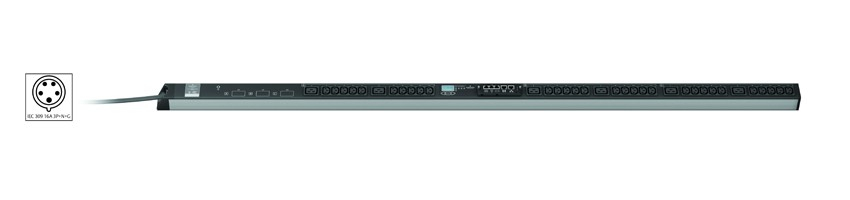

Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309 230/400V

Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309 230/400V

3x16A, outputs (30)C13 (6)C19

Model MPHB1244EAN 813829017339

31 specifications
  • Weight4 kg
  • ColourBlack
  • PDU typesMetered
  • AC outlets quantity36 AC outlet(s)
  • LED indicatorsYes
  • MonitoringCurrent, Humidity, Temperature
See all specifications

Overview

Weight
4 kg
Colour
Black
PDU types
Metered
AC outlets quantity
36 AC outlet(s)
LED indicators
Yes
Monitoring
Current, Humidity, Temperature
Brand
Vertiv
Model
MPHB1244
Part number
MPHB1244
EAN / UPC
813829017339
Also known as
Vertiv MPH2 Rack PDU, branch metered, 0U, input IEC 60309 230/400V 3x16A, outputs (30)C13 (6)C19

Specifications

31 specifications in 9 groups

Design

PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack

Ports & interfaces

AC outlets quantity36 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Output connections30 x C13 & 6 x C19

Features

LED indicatorsYes
Cable length3 m

Management features

MonitoringCurrent, Humidity, Temperature
Management platformWeb, CLI, SNMP, SSH, Telnet

Power

Nominal input voltage230-400 V
AC input frequency50 Hz
Maximum current16 A
Load capacity11000 VA
Power protection featuresOver current

Certificates

Compliance certificatesRoHS
CertificationUL, CSA, CE, REACH, FCC Class A, CB, WEEE, ISTA

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 2000 m

Weight & dimensions

Width56 mm
Depth50 mm
Height1736.5 mm
Weight4 kg

Packaging data

Package width137 mm
Package depth218 mm
Package height2017 mm
