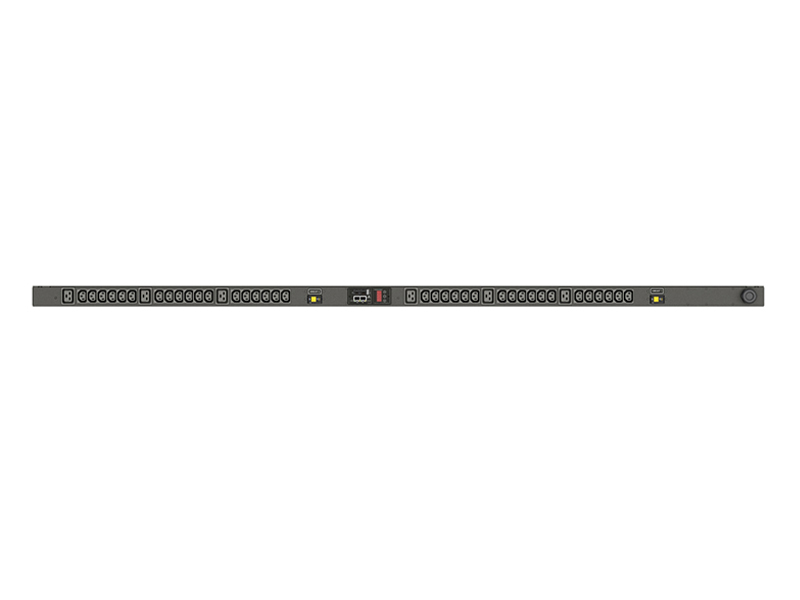

Monitored Outlet Level EC
Model Monitored Outlet Level ECPart no. GR30011L
32 specifications
- Power22000 W
- TypeThree-phase
- Weight9.98 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 9.98 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Monitored Outlet Level EC
- Part number
- GR30011L
- Also known as
- Vertiv Monitored Outlet Level EC power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
32 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Load capacity | 22000 VA |
| Maximum input current per phase | 32 A |
| Maximum power | 22000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | - CE Marked - RoHS Compliant & China RoHS - Complies with IEC 60950-1 (CB Certificate Available) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1829 mm |
| Depth | 51 mm |
| Height | 66 mm |
| Weight | 9.98 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.98 kg |
