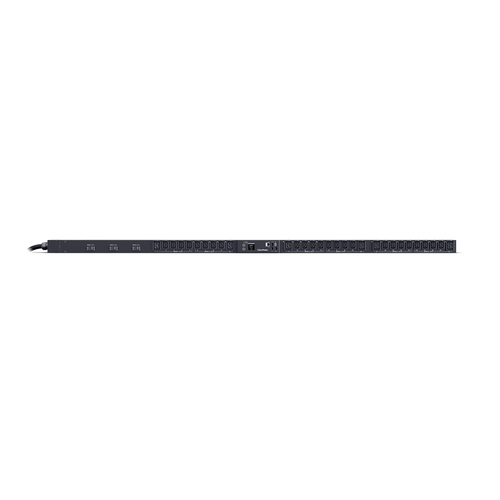

Vertiv Geist MNU3EGC1-18PB68-3TL6A0A10-S power distribution unit (PDU) 18 AC outlet(s) 0U Black

Vertiv Geist MNU3EGC1-18PB68-3TL6A0A10-S power distribution unit (PDU) 18 AC outlet(s) 0U Black

Model MNU3EGC1-18PB68-3TL6A0A10-SPart no. NU30131L

29 specifications
  • TypeSingle-phase
  • ColourBlack
  • PDU typesSwitched
  • AC outlets quantity18 AC outlet(s)
  • Reset buttonYes
  • Nominal input voltage200-240 V
See all specifications

Overview

Type
Single-phase
Colour
Black
PDU types
Switched
AC outlets quantity
18 AC outlet(s)
Reset button
Yes
Nominal input voltage
200-240 V
Brand
Vertiv
Model
MNU3EGC1-18PB68-3TL6A0A10-S
Part number
NU30131L
Also known as
Vertiv Geist MNU3EGC1-18PB68-3TL6A0A10-S power distribution unit (PDU) 18 AC outlet(s) 0U Black

Specifications

29 specifications in 9 groups

Design

PDU typesSwitched
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
DisplayLED
On/off switchYes

Ports & interfaces

AC outlets quantity18 AC outlet(s)
Power plugNEMA L6-30P
AC outlet typesC13 coupler, C19 coupler
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
USB ports quantity1

Features

Reset buttonYes
LED indicatorsYes
Cable length3 m

Management features

Supported network protocolsDHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Nominal input voltage200-240 V
AC input frequency50/60 Hz
Maximum current30 A
Load capacity208 VA
Number of phases1
Power protection featuresOver current

Certificates

CertificationRoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1

Operational conditions

Operating temperature (T-T)0 - 60 °C

Weight & dimensions

Width51 mm
Depth66 mm
Height1372 mm

Packaging data

Package weight9.07 kg
