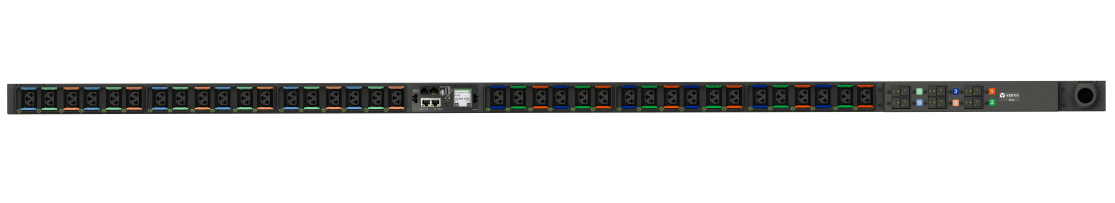

MNS5MGW1-36CF13-3PS56B0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Model MNS5MGW1-36CF13-3PS56B0A10-S-APart no. VP5N30AS
26 specifications
- Power17200 W
- TypeThree-phase
- Weight9.98 kg
- ColourBlack
- PDU typesMonitored, Switched
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 17200 W
- Type
- Three-phase
- Weight
- 9.98 kg
- Colour
- Black
- PDU types
- Monitored, Switched
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNS5MGW1-36CF13-3PS56B0A10-S-A
- Part number
- VP5N30AS
- Also known as
- Vertiv MNS5MGW1-36CF13-3PS56B0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored, Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 240 V |
| Load capacity | 17200 VA |
| Maximum power | 17200 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL, cUL, RoHS, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1829 mm |
| Weight | 9.98 kg |
