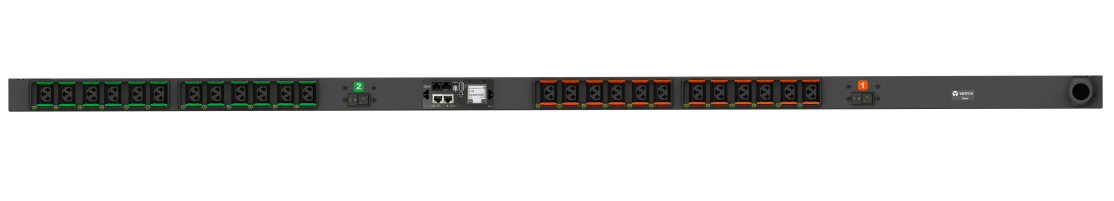

MNS5MGB1-24CF18-3TL6A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model MNS5MGB1-24CF18-3TL6A0A10-SPart no. VP5N30AP
26 specifications
- Power4900 W
- Weight9.07 kg
- ColourBlack
- PDU typesMonitored, Switched
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 4900 W
- Weight
- 9.07 kg
- Colour
- Black
- PDU types
- Monitored, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNS5MGB1-24CF18-3TL6A0A10-S
- Part number
- VP5N30AP
- Also known as
- Vertiv MNS5MGB1-24CF18-3TL6A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored, Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Load capacity | 4900 VA |
| Maximum power | 4900 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL, cUL, RoHS, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
| Weight | 9.07 kg |
