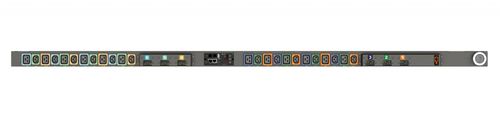

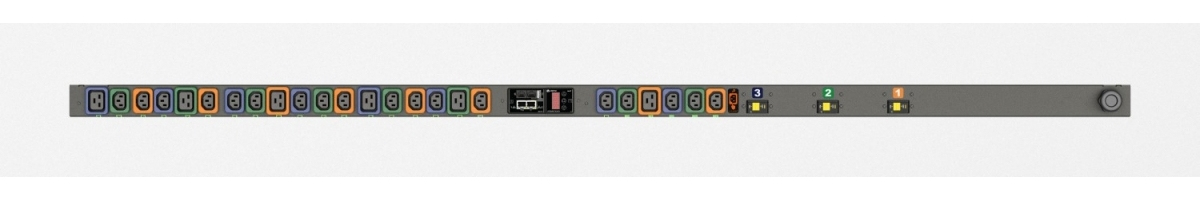

Vertiv Geist MNS3EGB1-24PH68-3TL15A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Vertiv Geist MNS3EGB1-24PH68-3TL15A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Model MNS3EGB1-24PH68-3TL15A0A10-S-APart no. NS30026L

30 specifications
  • TypeThree-phase
  • ColourBlack
  • PDU typesSwitched
  • AC outlets quantity24 AC outlet(s)
  • Reset buttonYes
  • MonitoringCurrent, Power, Voltage
See all specifications

Overview

Type
Three-phase
Colour
Black
PDU types
Switched
AC outlets quantity
24 AC outlet(s)
Reset button
Yes
Monitoring
Current, Power, Voltage
Brand
Vertiv
Model
MNS3EGB1-24PH68-3TL15A0A10-S-A
Part number
NS30026L
Also known as
Vertiv Geist MNS3EGB1-24PH68-3TL15A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Specifications

30 specifications in 9 groups

Design

PDU typesSwitched
TypeThree-phase
Rack capacity0U
MountingVertical
Product colourBlack
DisplayLED
On/off switchNo

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugNEMA L15-30P
AC outlet typesC13 coupler, C19 coupler
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
USB ports quantity1

Features

Reset buttonYes
LED indicatorsYes
Cable length3.05 m

Management features

MonitoringCurrent, Power, Voltage
Supported network protocolsDHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Nominal input voltage200-240 V
AC input frequency50/60 Hz
Maximum current30 A
Nominal output voltage30 V
Load capacity208 VA
Power protection featuresOver current

Certificates

CertificationRoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1

Operational conditions

Operating temperature (T-T)10 - 45 °C

Weight & dimensions

Width51 mm
Depth66 mm
Height1683 mm

Packaging data

Package weight9.98 kg
