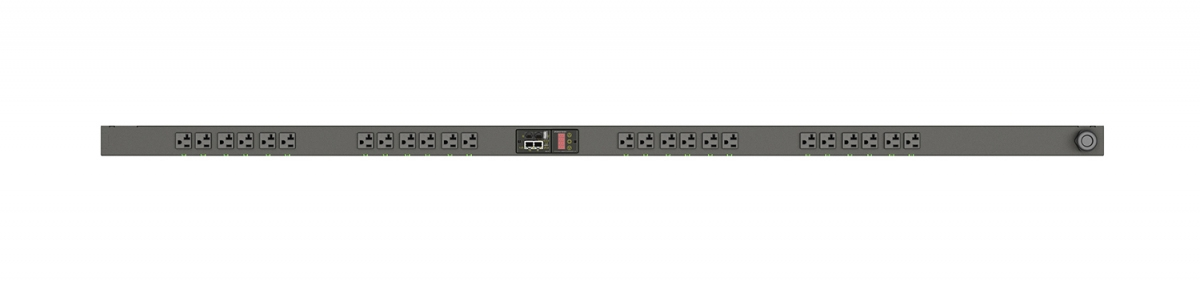

Geist MNS3EGB0-24S203-2ST5A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model MNS3EGB0-24S203-2ST5A0A10-SPart no. NS30004
26 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage100-120 V
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 100-120 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNS3EGB0-24S203-2ST5A0A10-S
- Part number
- NS30004
- Also known as
- Vertiv Geist MNS3EGB0-24S203-2ST5A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
26 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 120 VA |
| Number of phases | 1 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.16 kg |
