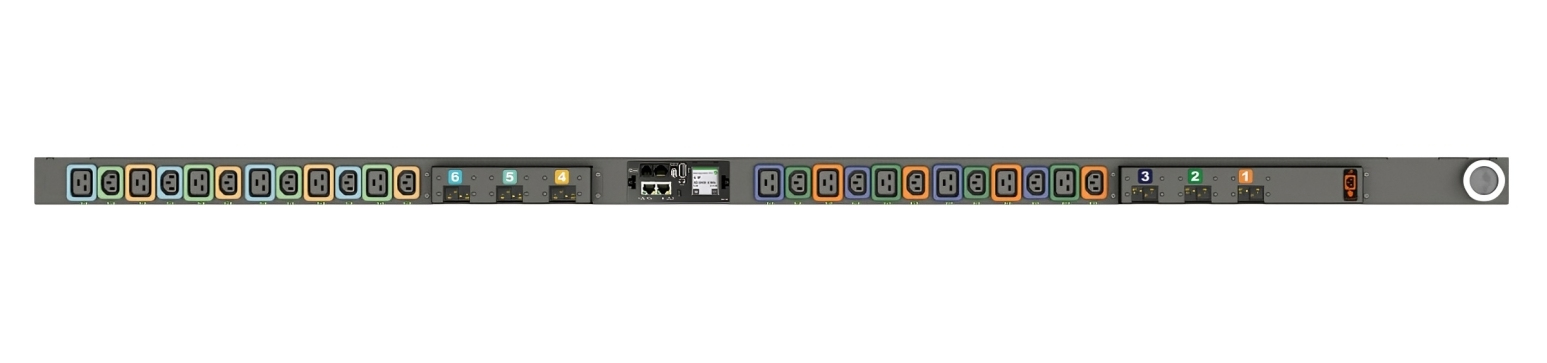

Geist MNR5MGW1-24PBB8-5CS15A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model MNR5MGW1-24PBB8-5CS15A0A10-S-APart no. VP6N50A0
29 specifications
- Power14400 W
- TypeThree-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 14400 W
- Type
- Three-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNR5MGW1-24PBB8-5CS15A0A10-S-A
- Part number
- VP6N50A0
- Also known as
- Vertiv Geist MNR5MGW1-24PBB8-5CS15A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
29 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Temperature, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240V |
| AC input frequency | 50/60 Hz |
| Maximum current | 50 A |
| Output voltage | 208 V |
| Maximum power | 14400 W |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS, UL |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1778 mm |
| Depth | 66 mm |
| Height | 58 mm |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.98 kg |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
