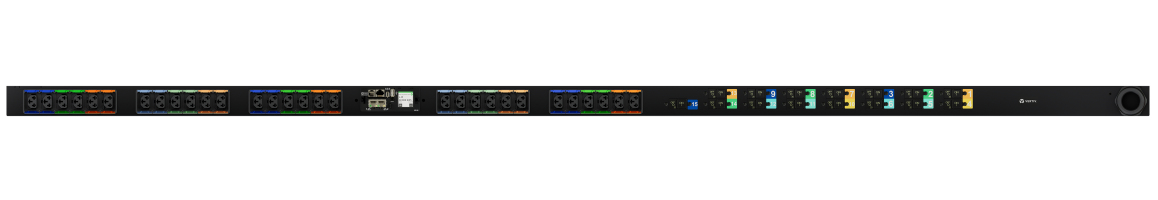

MN05MGW1-30CF13-6PS56B0A10-S power distribution unit (PDU) 30 AC outlet(s) 0U Black
Model MN05MGW1-30CF13-6PS56B0A10-SPart no. VP4N6037EAN 767041044058
27 specifications
- Power34500 W
- TypeThree-phase
- Weight8.6 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity30 AC outlet(s)
Overview
- Power
- 34500 W
- Type
- Three-phase
- Weight
- 8.6 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 30 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN05MGW1-30CF13-6PS56B0A10-S
- Part number
- VP4N6037
- EAN / UPC
- 767041044058
- Also known as
- Vertiv MN05MGW1-30CF13-6PS56B0A10-S power distribution unit (PDU) 30 AC outlet(s) 0U Black
Specifications
27 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | CEE 5-pin |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Power, Current, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 240 V |
| Load capacity | 34500 VA |
| Maximum power | 34500 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL, cUL, RoHS, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 89 mm |
| Height | 2032 mm |
| Weight | 8.6 kg |
