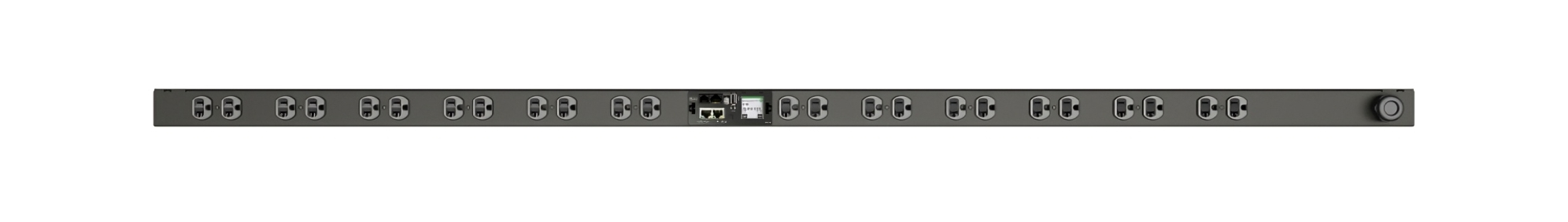

Geist MN05M4B0-24D203-2ST5A0A10-S power distribution unit (PDU) 24 AC outlet(s) Black
Model MN05M4B0-24D203-2ST5A0A10-SPart no. VP4N20A0
31 specifications
- Power1900 W
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 1900 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN05M4B0-24D203-2ST5A0A10-S
- Part number
- VP4N20A0
- Also known as
- Vertiv Geist MN05M4B0-24D203-2ST5A0A10-S power distribution unit (PDU) 24 AC outlet(s) Black
Specifications
31 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Temperature, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Output voltage | 120 V |
| Maximum power | 1900 W |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS, UL |
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1682 mm |
| Depth | 50 mm |
| Height | 50 mm |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
