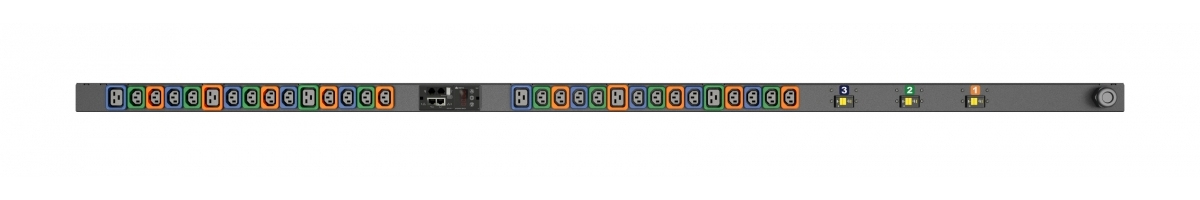

Geist MN03E4W1-30PN68-4CS15A0A10-S-A power distribution unit (PDU) 30 AC outlet(s) 0U Black
Model MN03E4W1-30PN68-4CS15A0A10-S-APart no. NI30298L
26 specifications
- TypeThree-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity30 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Power, Voltage
Overview
- Type
- Three-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 30 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN03E4W1-30PN68-4CS15A0A10-S-A
- Part number
- NI30298L
- Also known as
- Vertiv Geist MN03E4W1-30PN68-4CS15A0A10-S-A power distribution unit (PDU) 30 AC outlet(s) 0U Black
Specifications
26 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 35 A |
| Output voltage | 208 V |
| Load capacity | 208 VA |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1683 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.71 kg |
