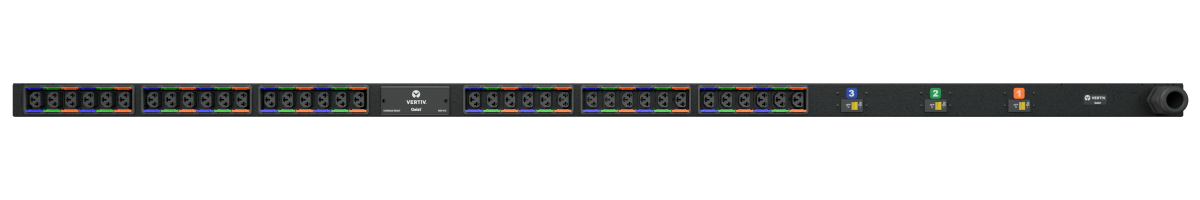

Geist MN01X4W1-36CF18-4CS15A0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Model MN01X4W1-36CF18-4CS15A0A10-S-APart no. I10489
21 specifications
- TypeThree-phase
- ColourBlack
- PDU typesBasic
- AC outlets quantity36 AC outlet(s)
- Cable length3 m
- Nominal input voltage200-240 V
Overview
- Type
- Three-phase
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 36 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 200-240 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN01X4W1-36CF18-4CS15A0A10-S-A
- Part number
- I10489
- Also known as
- Vertiv Geist MN01X4W1-36CF18-4CS15A0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
21 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 35 A |
| Output voltage | 208 V |
| Load capacity | 208 VA |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1778 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.71 kg |
