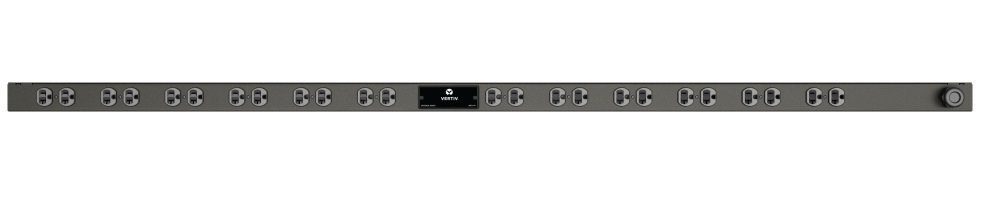

MN01X4B0-24D203-2TL5A0A10-S power distribution unit (PDU) 24 AC outlet(s) Black
Model MN01X4B0-24D203-2TL5A0A10-SPart no. I10013
18 specifications
- Power1900 W
- Weight6.8 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
Overview
- Power
- 1900 W
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN01X4B0-24D203-2TL5A0A10-S
- Part number
- I10013
- Also known as
- Vertiv MN01X4B0-24D203-2TL5A0A10-S power distribution unit (PDU) 24 AC outlet(s) Black
Specifications
18 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L5-20P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 120 V |
| Load capacity | 1900 VA |
| Maximum power | 1900 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL, cUL, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 50.8 mm |
| Height | 1682.7 mm |
| Weight | 6.8 kg |
