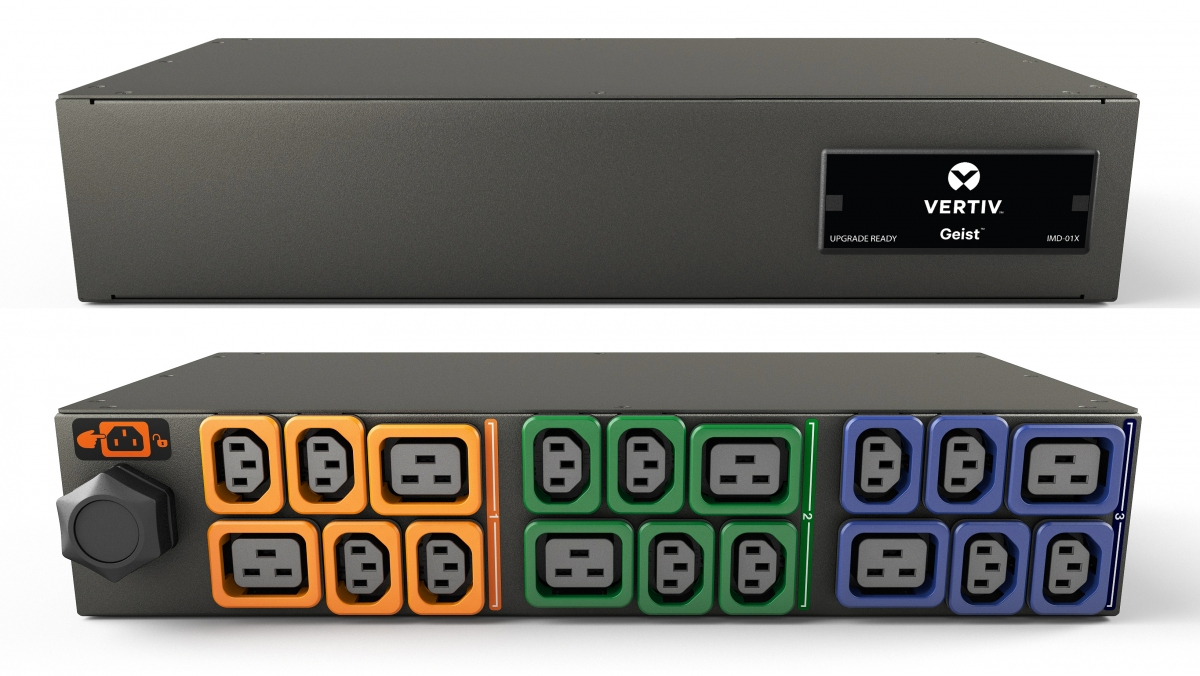

Geist MN01X2R0-18PB63-2PS56B0H10-S power distribution unit (PDU) 18 AC outlet(s) 0U Black
Model MN01X2R0-18PB63-2PS56B0H10-SPart no. I10159L
21 specifications
- TypeThree-phase
- ColourBlack
- PDU typesBasic
- AC outlets quantity18 AC outlet(s)
- LED indicatorsPower
- Nominal input voltage200-240/346-415 V
Overview
- Type
- Three-phase
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 18 AC outlet(s)
- LED indicators
- Power
- Nominal input voltage
- 200-240/346-415 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN01X2R0-18PB63-2PS56B0H10-S
- Part number
- I10159L
- Also known as
- Vertiv Geist MN01X2R0-18PB63-2PS56B0H10-S power distribution unit (PDU) 18 AC outlet(s) 0U Black
Specifications
21 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | Power |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240/346-415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 230 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 153 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.35 kg |
