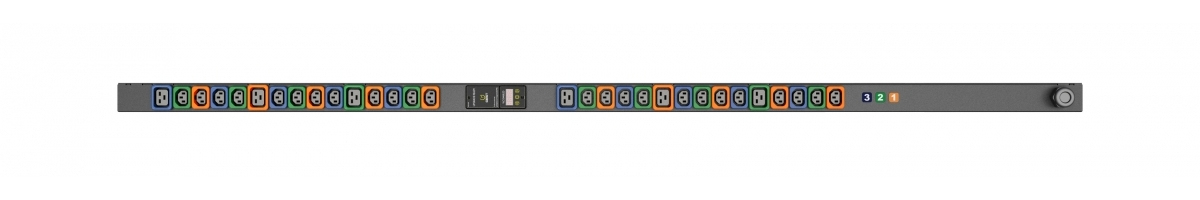

Geist MN01D4B0-30PN63-2PS56B0A10-S-A power distribution unit (PDU) 30 AC outlet(s) 0U Black
Model MN01D4B0-30PN63-2PS56B0A10-S-APart no. I10153L
19 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMetered
- AC outlets quantity30 AC outlet(s)
- Cable length3 m
- Nominal input voltage200-240/346-415 V
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 30 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 200-240/346-415 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN01D4B0-30PN63-2PS56B0A10-S-A
- Part number
- I10153L
- Also known as
- Vertiv Geist MN01D4B0-30PN63-2PS56B0A10-S-A power distribution unit (PDU) 30 AC outlet(s) 0U Black
Specifications
19 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240/346-415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 230 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1683 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.26 kg |
