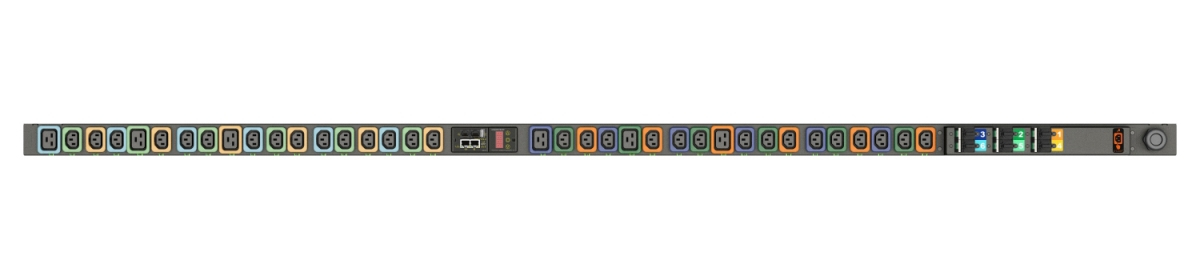

MGU3EGW2-36PT63-3PS56B2A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Model MGU3EGW2-36PT63-3PS56B2A10-S-APart no. GU30011L
30 specifications
- Power22000 W
- TypeThree-phase
- Weight9.98 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 9.98 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MGU3EGW2-36PT63-3PS56B2A10-S-A
- Part number
- GU30011L
- Also known as
- Vertiv MGU3EGW2-36PT63-3PS56B2A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
30 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| LED indicators | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Outlet control | Turn off, Turn on |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1829 mm |
| Weight | 9.98 kg |
