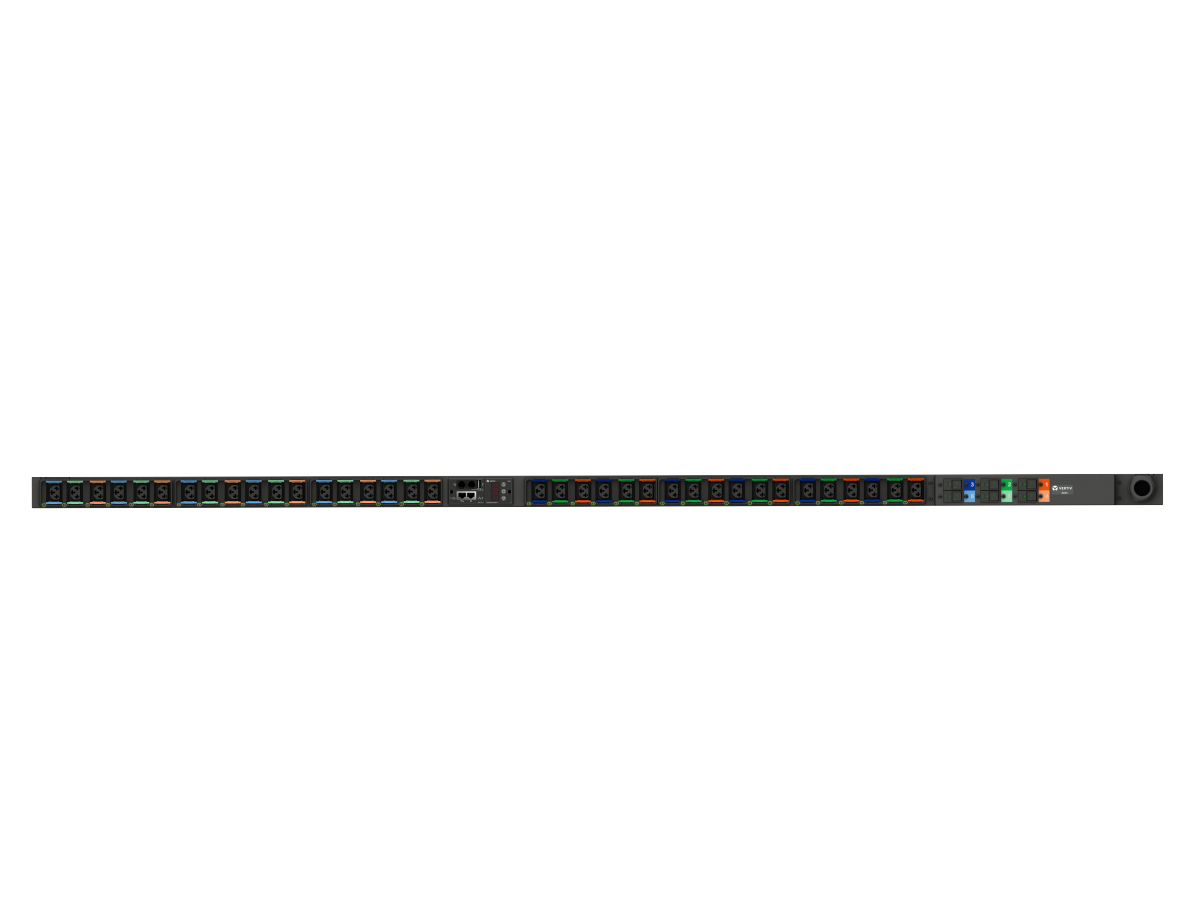

Geist MGR3EGW1-36CF13-3PS56B2A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Model MGR3EGW1-36CF13-3PS56B2A10-S-APart no. VP6G9006
29 specifications
- TypeThree-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity36 AC outlet(s)
- Reset buttonYes
- Nominal input voltage200-240/346-415 V
Overview
- Type
- Three-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 36 AC outlet(s)
- Reset button
- Yes
- Nominal input voltage
- 200-240/346-415 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MGR3EGW1-36CF13-3PS56B2A10-S-A
- Part number
- VP6G9006
- Also known as
- Vertiv Geist MGR3EGW1-36CF13-3PS56B2A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
29 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240/346-415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Load capacity | 230 VA |
| Number of phases | 3 |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark RCM Mark (EMC Only) China RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1829 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.98 kg |
